52 17... Removing and installing outer upper rail cover

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Move seat backwards and upwards.

Unclip cover (1) towards front.

Fig 1: Removing Outer Upper Rail Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Driver's seat only:

NOTE: Version with end fitting pretensioner.

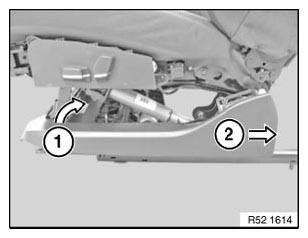

Feed cover out of seat mechanism:

upwards,
slide towards rear

Feed out cover.

Fig 2: Removing Cover From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
