52 26... Removing and installing/replacing ski bag frame
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
"With ski bag" version only:
- Remove ski back.

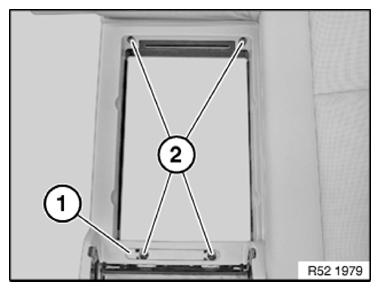

- Lever out screw cover in marked area (1).
- Unscrew screws (2).
Tightening torque 52 26 05AZ .
IMPORTANT:
Risk of damage!

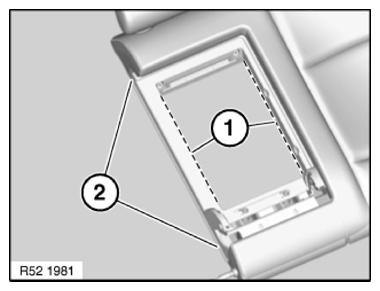

Unclip front ski bag trim in marked area (1).
In area (2), carefully unclip from ski bag trim from rear ski bag trim.

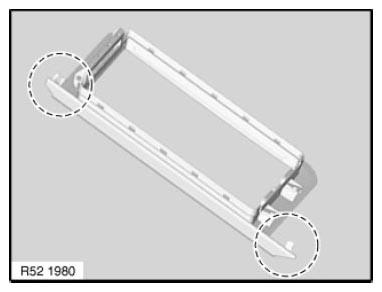

Lever out rear ski bag frame (1) if necessary with special tool 00 9 317 .
Installation:
Retaining lugs and plastic eyelets of front ski bag trim must not be damaged.
If necessary, replace faulty ski bag trim.
"Without skibag" version only
IMPORTANT:
Risk of damage!

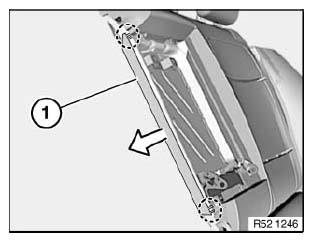

Pull cover trim (1) at top edges in stages and unclip.
Installation:

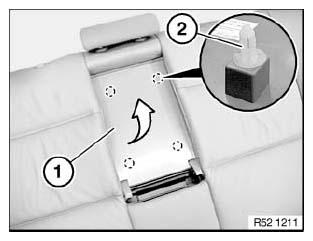

Clips (2) might remain stuck in the backrest frame and must be removed.
Replace faulty clips (2).
NOTE:

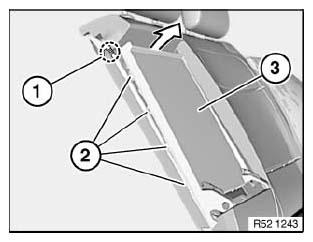

Forcefully pull top edge of cover trim (3) forwards and unclip upper retaining lug (1).
Unclip the four retaining lugs (2) in succession.
Unclip the four retaining lugs (2) in succession.
NOTE:
Twist cover trim (1) out of lower retaining lug during removal.
Cover trim (1) must be replaced if retaining lugs are faulty.
Cover trim (1) must be replaced if retaining lugs are faulty.
Remove cover strip (1) from backrest frame.
NOTE:
Cover strip (1) must be replaced if retaining lugs are faulty.
