23... Universal transmission bracket

Special tools required:

00 2 030 . See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
23 4 050 . See MANUAL TRANSMISSION - SPECIAL TOOLS .

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

Fig 1: Identifying Front And Rear Supports, Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4050 , 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

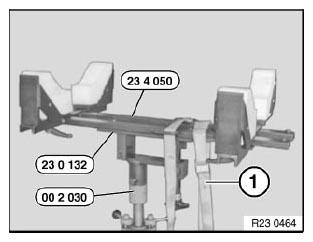

Fig 2: Identifying Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.
