61 35.. Overview Of Control Units

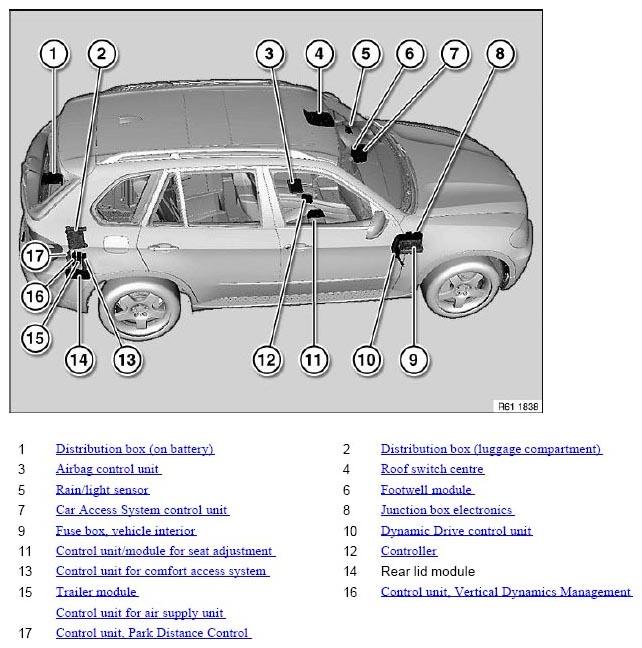

Fig 1: Overview Of Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
