Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

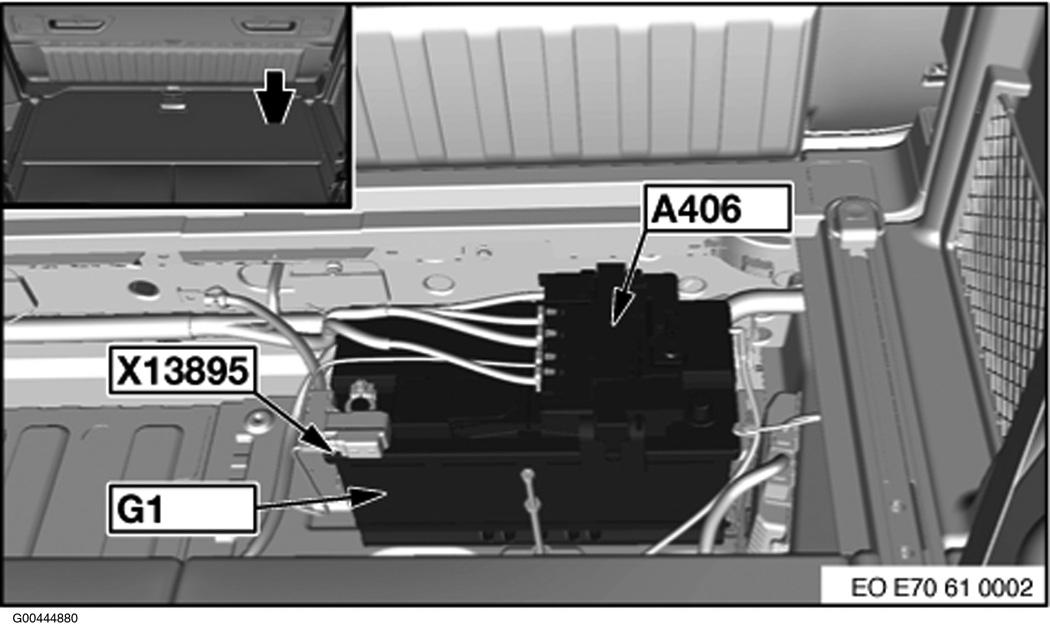

| Fuse Box (A406) | Under left side of rear compartment floor. See Figure. |

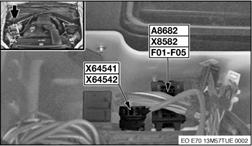

| Fuse Carrier, Engine Electronics (A8682) (3.0L Diesel) | Right rear engine compartment. See Figure. |

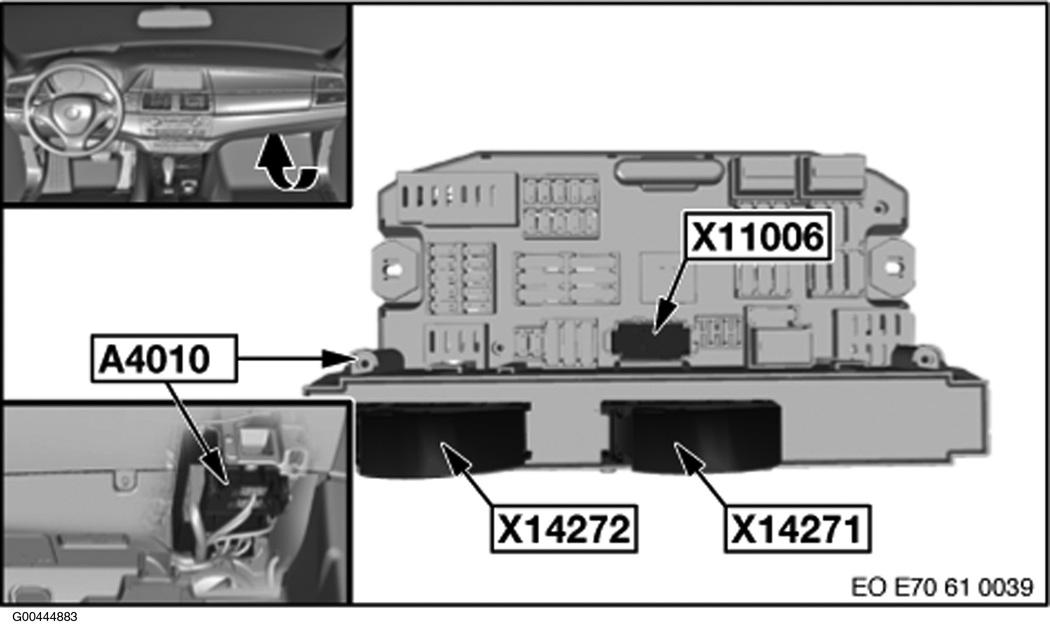

| Junction Box (A4010) | Under right side of dash. See Figure. |

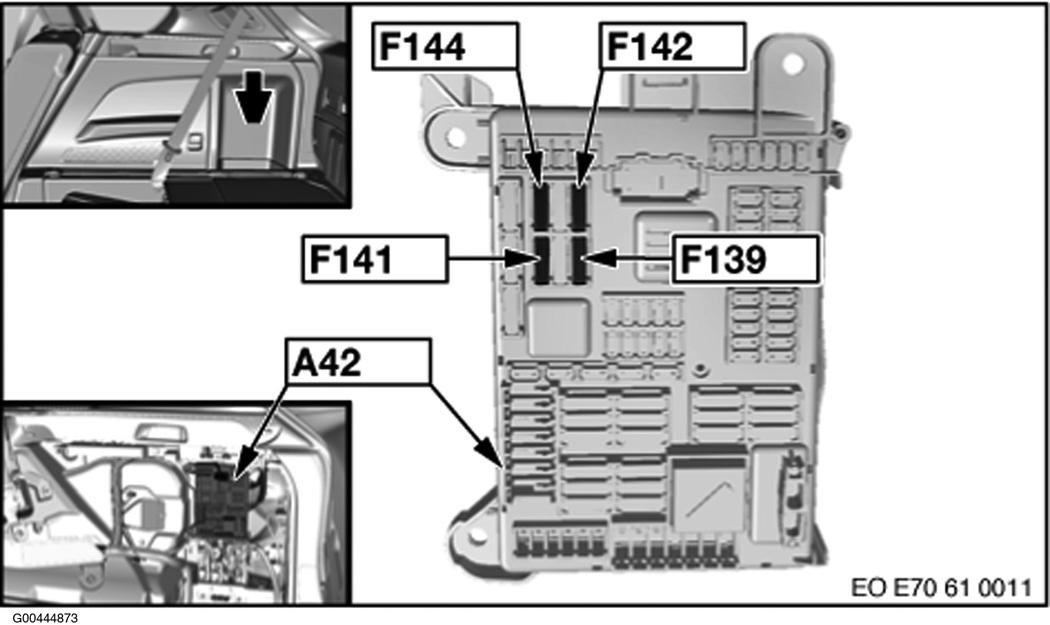

| Rear Power Distribution Box (A42) | Right side of rear compartment. See Figure. |
