Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

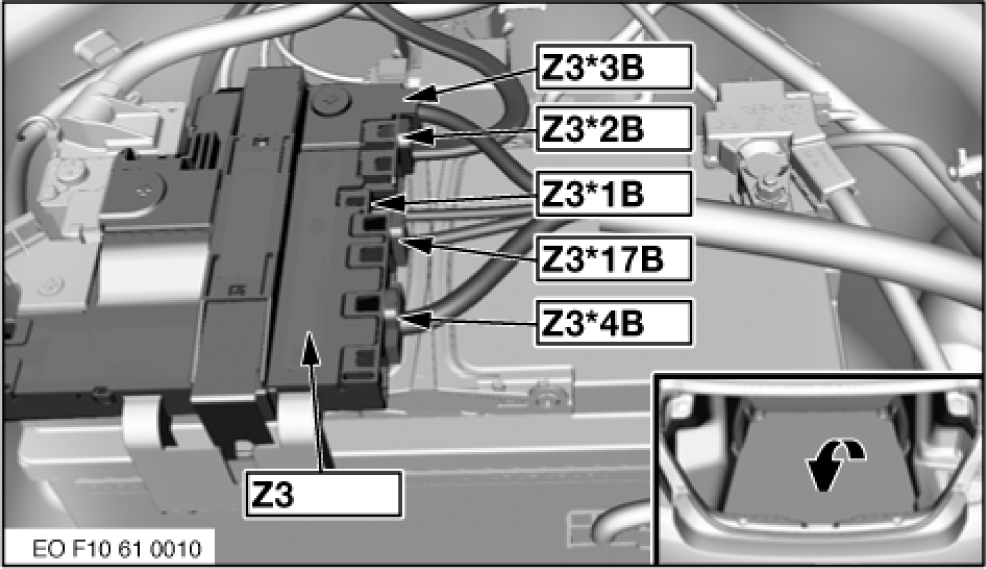

Fuse Box (Z3) Under spare tire. See Figure.

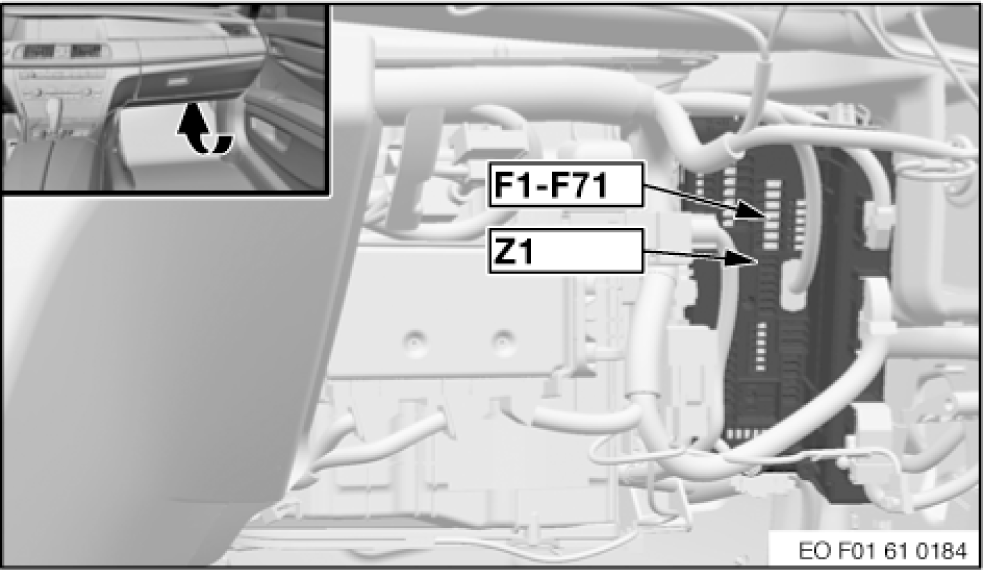

Junction Box (Z1) Right side of dash. See Figure.

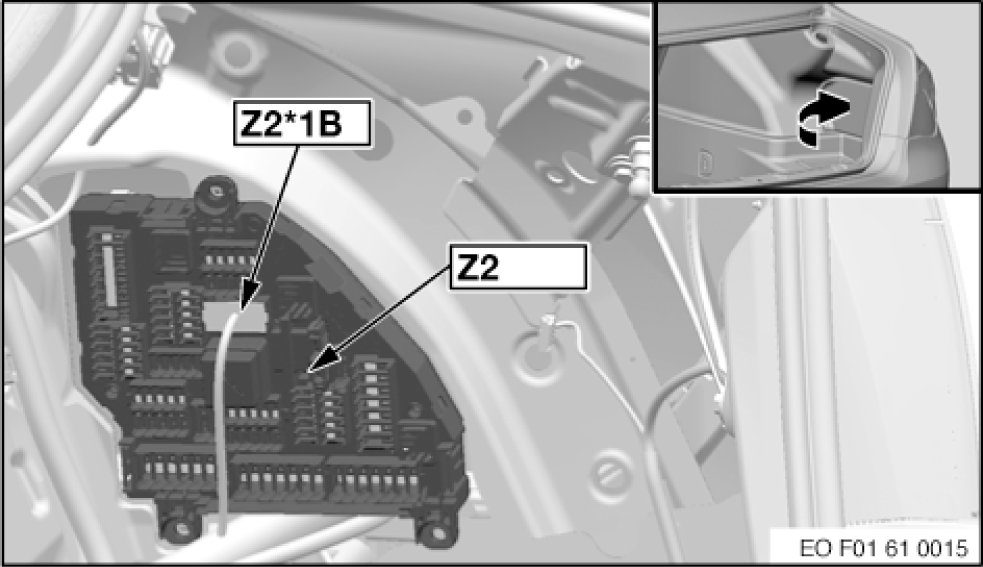

Rear Fuse Holder (Z2) Right side of rear compartment. See Figure.
