Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

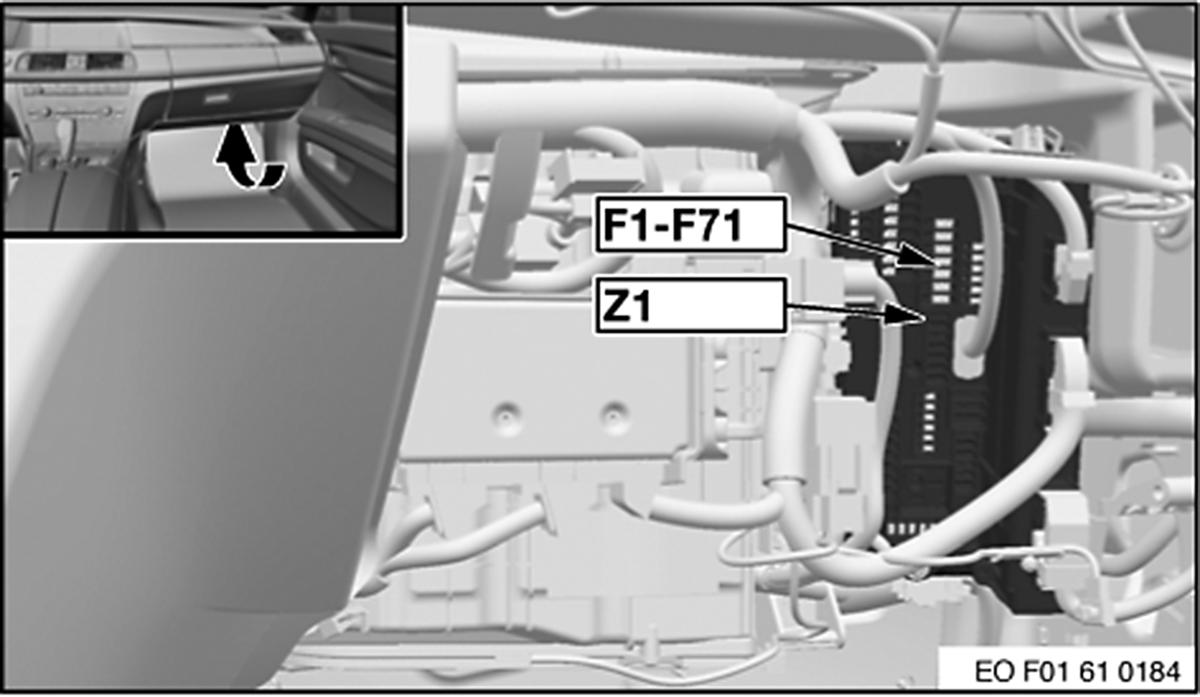

| Front Distribution Box (Z1) | Right side of dash. See Figure. |

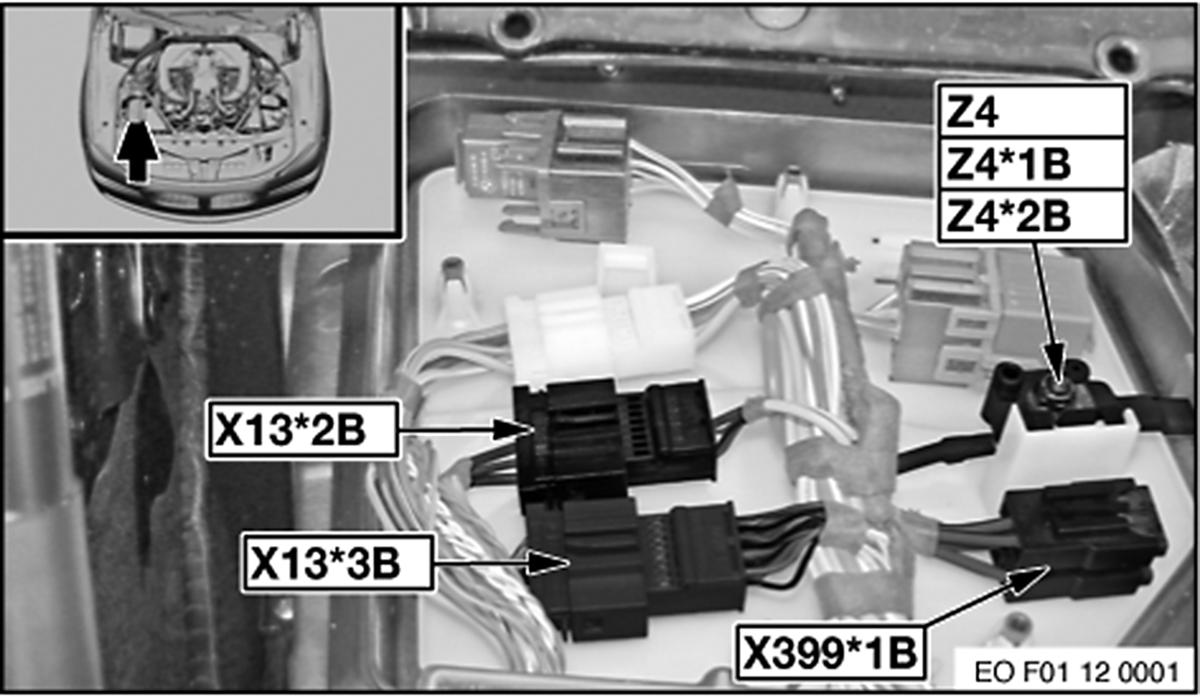

| Front Power Distribution Box (Z4) | Right front of engine compartment. See Figure. |

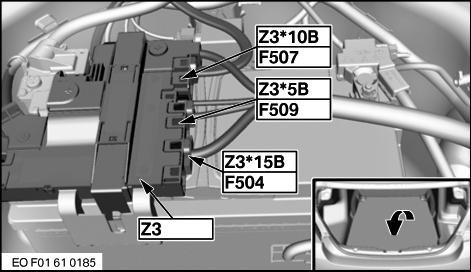

| Fuse Box (Z3) | Center of luggage compartment. See Figure. |

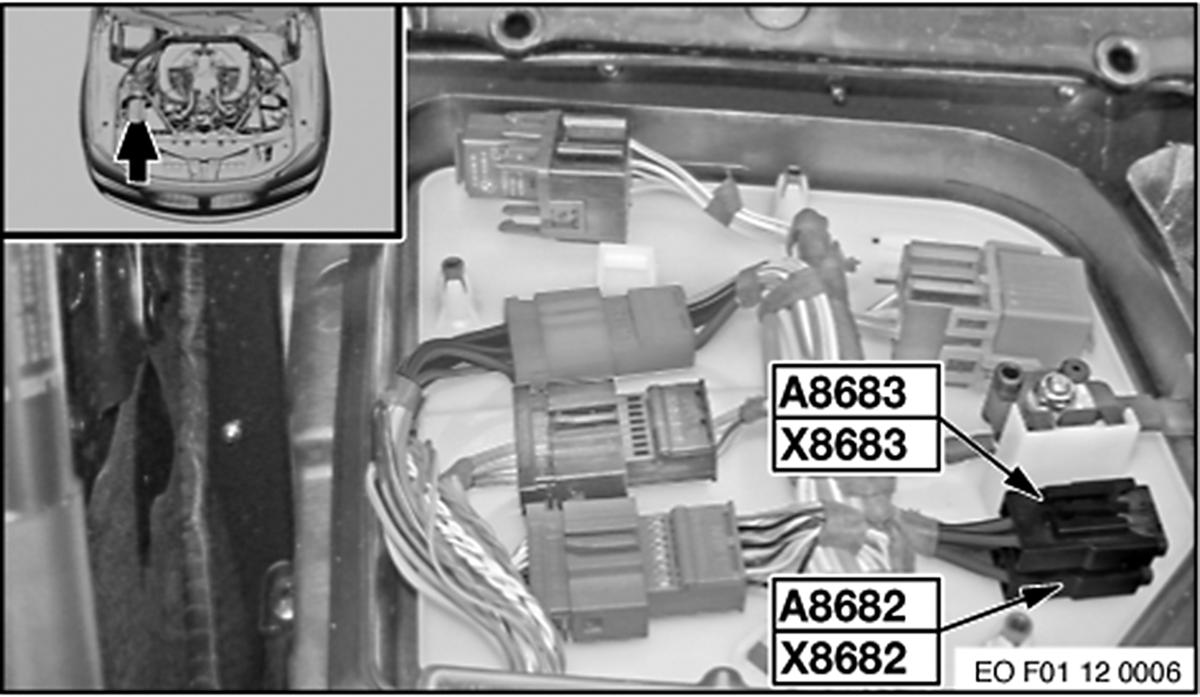

| Fuse Holder (A8682 & A8683) | Right front of engine compartment. See Figure. |
| Junction Box | Right side of dash. |

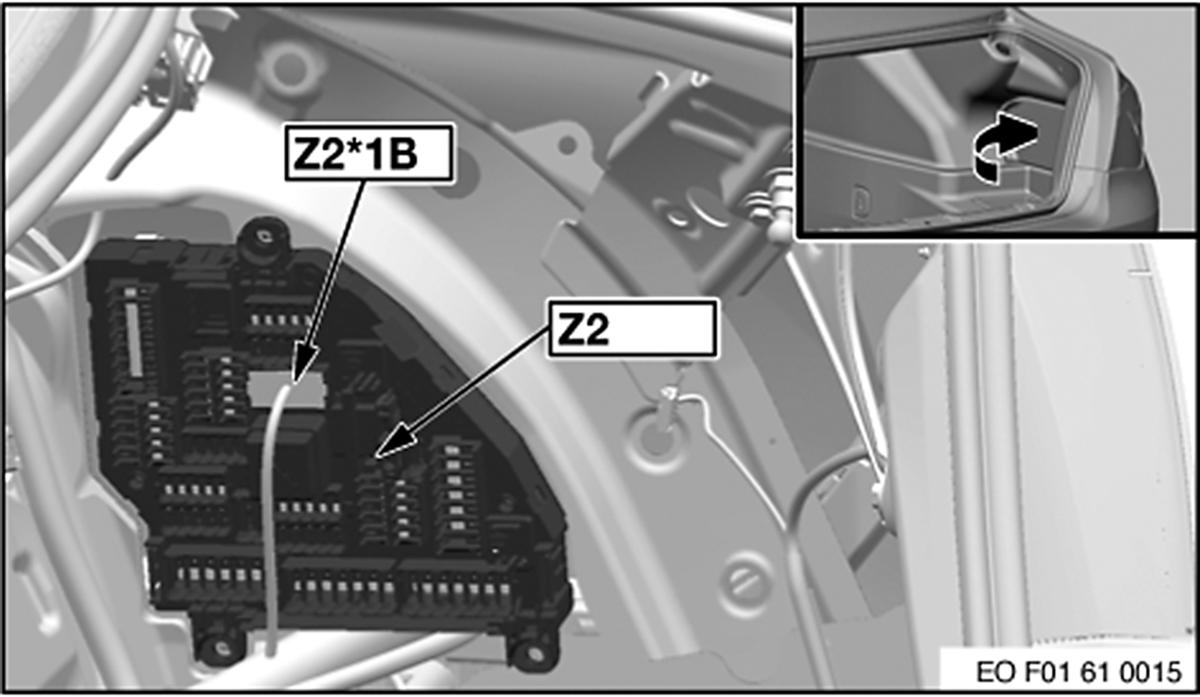

| Rear Distribution Box (Z2) | Right rear of luggage compartment. See Figure. |
