61 13... Opening plug housings and removing contacts of different plug systems: Notes
Special tools required:
- 61 0 300
- 61 0 400
- 61 1 100
- 61 1 150
| Abbreviations of contacts and what they mean: | |
|---|---|
| ELA | Strand seal |
| D 1.5 / 2.5 / 3.5 | Round contacts with 1.5 mm, 2.5 mm or 3.5 mm diameter |
| MDK | Miniature double flat spring contact |
| JPT | Junior Power timer |
| DFK | Double flat spring contacts |
| Elo | Electronic contacts |
| Elo Power | Electronic contacts for heavy load |
| MQS | Micro Quadlock system |
| MPQ | Micro Power Quadlock |
| MLK | Mini laminated contact |
| SLK | Sensor laminated contact |
| MLK | Mini laminated contact |
| Mcon | Multi contact |
IMPORTANT:

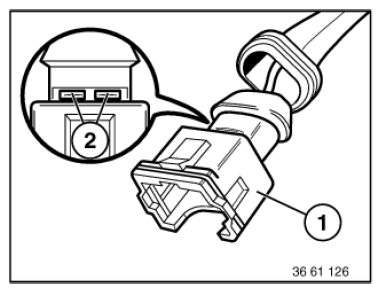

The contacts can be changed on ultrasonically welded connectors (1).
Ultrasonically welded connectors (1) must be replaced completely.
Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
- Release and press-out tool 61 1 150 is replaced from 09/2005 by 61 0 300 (BMW) and 61 0 400 (MINI)
- Release and press-out tool 61 1 100 (engine)
Index of connectors:
- CONNECTOR HOUSING, LCC CONTACT (LOAD CURRENT CONTACT)
- IN-LINE PLUGS, 2-PIN, SYSTEM JPT ELA
- IN-LINE PLUGS, 24-PIN, HYBRID SYSTEM MQS/MPQ
- IN-LINE PLUGS, 30-PIN, HYBRID SYSTEM MQS/MPQ
- IN-LINE PLUGS, 6- TO 50-PIN, SYSTEM ELO
- INLINE PLUGS, 6-, 8- PIN, SYSTEM MQS
- INLINE PLUGS, 8-, 12- PIN, SYSTEM D2.5
- SOCKET HOUSING (RADIO PLUG), HYBRID SYSTEM MQS/MPQ
- SOCKET HOUSING 42-, 43-PIN, HYBRID SYSTEM MQS / MPQ
- SOCKET HOUSINGS, 2X21-, 2X27-PIN, HYBRID SYSTEMS MQS/MPQ, ELO/ELO-POWER
Special tools required:
- 61 0 300
- 61 0 400
- 61 1 100
- 61 1 150
| Abbreviations of contacts and what they mean: | |
|---|---|
| ELA | Strand seal |
| D 1.5 / 2.5 / 3.5 | Round contacts with 1.5 mm, 2.5 mm or 3.5 mm diameter |
| MDK | Miniature double flat spring contact |
| JPT | Junior Power timer |
| DFK | Double flat spring contacts |
| Elo | Electronic contacts |
| Elo Power | Electronic contacts for heavy load |
| MQS | Micro Quadlock system |
| MPQ | Micro Power Quadlock |
| MLK | Mini laminated contact |
| SLK | Sensor laminated contact |
| MLK | Mini laminated contact |
| Mcon | Multi contact |
IMPORTANT:
The contacts can be changed on ultrasonically welded plugs (1).
Ultrasonically welded plugs (1) must be replaced completely.
Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
Ultrasonically welded plugs (1) must be replaced completely.
Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
- Release and press-out tool 61 1 150 is replaced from 09/2005 by 61 0 300 (BMW) and 61 0 400 (MINI).
- Release and press-out tool 61 1 100 (engine).
Repair instructions for opening plug housings and removing contacts of different plug systems.
