61 13... Repair wiring harness, left or right

IMPORTANT: Repair wiring harness represents the highest vehicle specification. Secure cables that are not needed to avoid noises.
Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Installation note:

Use suitable TOOL FOR REPAIR WIRING HARNESS .

Necessary preliminary tasks:

Remove WHEEL ARCH COVER AT FRONT (REAR PART) ON LEFT OR RIGHT .

Perform wiring harness repair in area (2) as specified in wiring diagram.

Repair connector for fan as specified in wiring diagram if necessary.

Installation note:

Make sure repair wiring harness (1) is routed without possibility of abrasions.

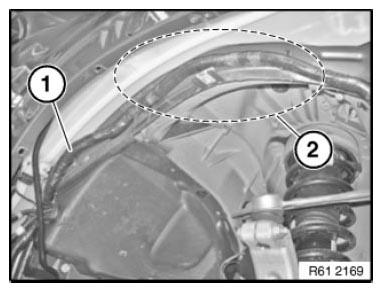

Fig 1: Identifying Wiring Harness Repair Area

Courtesy of BMW OF NORTH AMERICA, INC.
