61 00... Diagnosis for Condition Based Service: Notes

NOTE: Red symbol for pre-delivery check The vehicle is coded at the end of line so that the red symbol for the pre-delivery check is shown in the Next Service indicator (same symbol as vehicle check).
The symbol is a reminder to the Service staff that the pre-delivery check has not yet been carried out on this vehicle.

NOTE: Do not carry out a reset. Do not  confuse this function with the "Vehicle check" scope of maintenance work. Do not run a reset with the KOMBI.
When executing the pre-delivery check with the "Transport mode / Pre-delivery check" service function: The symbol will be suppressed automatically after the service function has been executed.

Fig 1: Identifying Pre-Delivery Check Symbol

Courtesy of BMW OF NORTH AMERICA, INC.

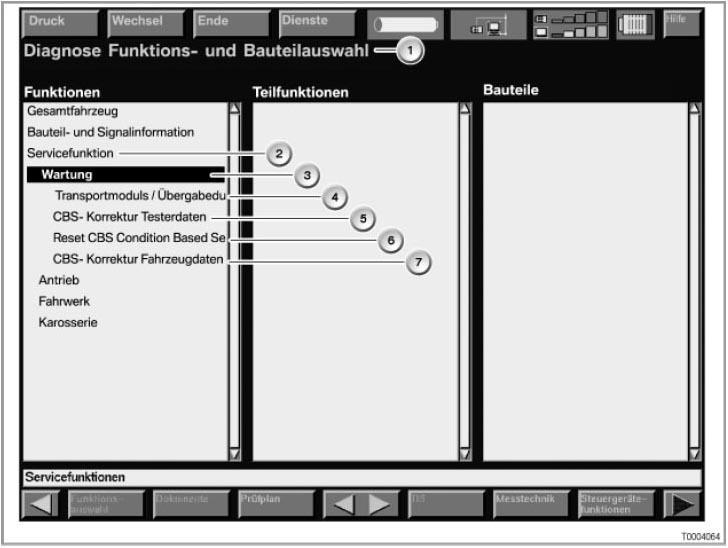

Fig 2: Screen Display - Service Functions

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Function and component selection
2	Service functions
3	Maintenance
4	Transport mode/pre-delivery check
5	CBS correction, tester data
6	Reset CBS Condition Based Service
7	CBS vehicle data correction
