6135... Overview of control units

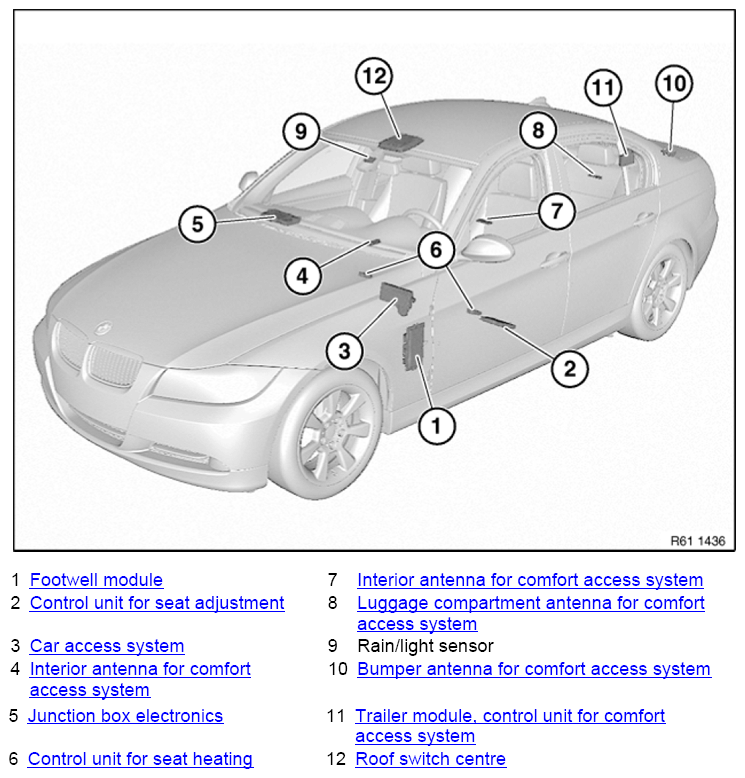

Fig 1: Overview Of Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
