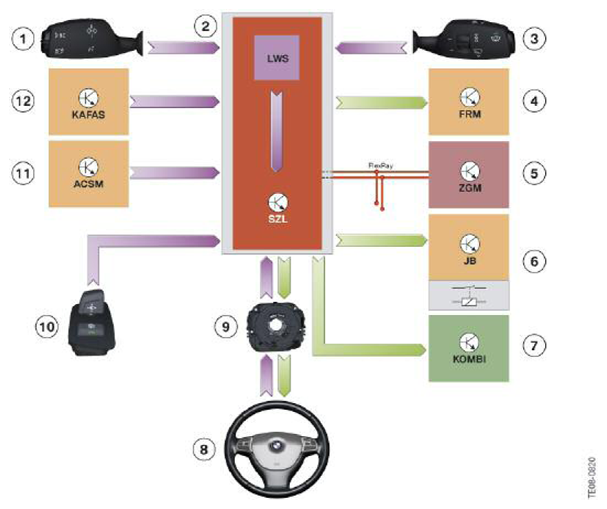

Input/output Diagram, Steering Column Switch Cluster
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Steering column stalk for turn-indicator/high-beam switch |
| 2 | Steering column switch cluster (SZL) |
| 3 | Steering column stalk wiper switch |
| 4 | Footwell module (FRM) 12 Control unit (KAFAS) |
| 5 | Central gateway module (ZGM) |
| FlexRay | FlexRay |
| 6 | Junction box electronics (JB) |
| 7 | Instrument cluster (KOMBI) |
| 8 | Multifunction steering wheel |
| 9 | Coil-spring assembly |
| 10 | Steering wheel heating/steering wheel adjustment buttons |
| 11 | Crash Safety Module (ACSM) |
| LIN-Bus | Local Interconnect Network bus |
| LWS | Steering-angle sensor |
The signals which are triggered by the turn-indicator/high-beam switch steering column stalk (1) or wiper switch (3) are made available to the footwell module (4) or the junction box electronics (6).
The button signals at the multifunction steering wheel (8) are directed through the coil-spring assembly (9) to the steering column switch cluster (2), where they are evaluated and then transmitted across the FlexRay.
