51 31... Remove windscreen with "Roll Out 2000": Notes

Special tools required:

2 150 267

Windscreen removal system "Roll Out 2000"

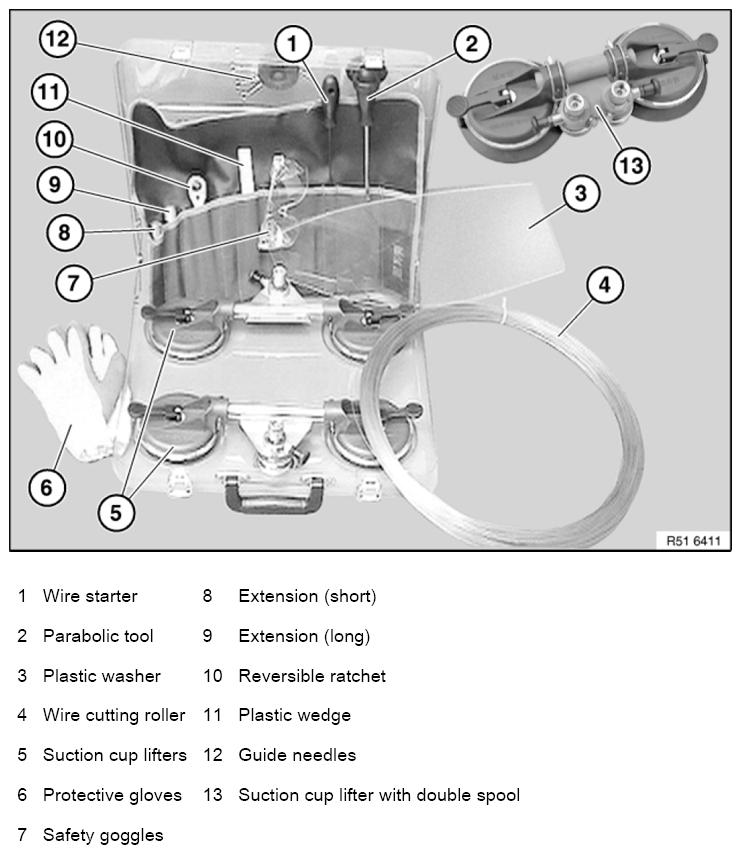

Fig 1: Identifying Windscreen Removal Components (Roll Out 2000)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both paint and ergonomic and health-endangering damage is minimized with the "Roll Out 2000" system.

WARNING: Follow safety instructions See 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS or 72 SAFETY PRECAUTIONS AND GENERAL INFORMATION for working on vehicles with airbag systems (risk of injury).

IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag and window glass).

IMPORTANT: Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.
Suction cup may not be applied at the damaged point (crack in window glass).
Lubricate spool if lock rattling becomes too loud.
Always wear safety goggles and protective gloves for your own safety.

Mounting suction cup lifters on windscreen or rear window:

Fig 2: Mounting Suction Cup Lifters On Windscreen Or Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

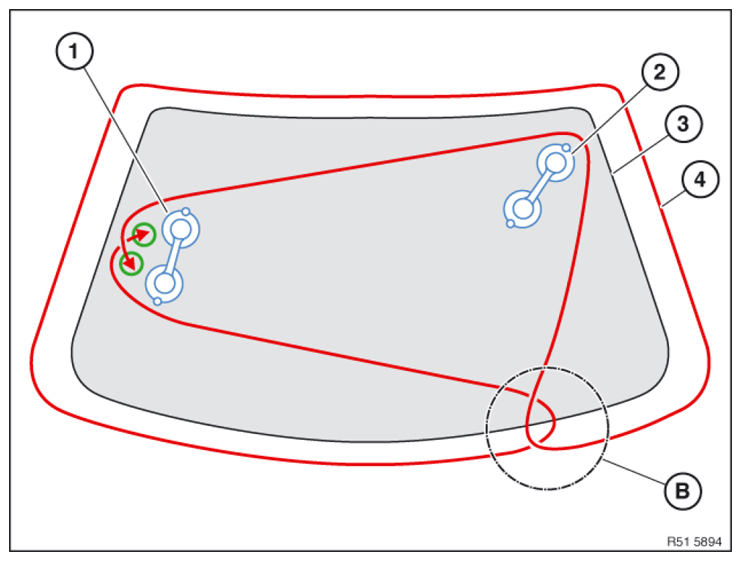

Secure position of lifting jacks as shown (view from outside):
1. Suction cup lifter with double spool
2. Suction cup lifter with single spool (as deflecting point)
3. Window
4. Cutting wire

NOTE: Optimum cutting is guaranteed when the cutting wire is at an acute angle to the adhesive bead. There is a risk of the cutting wire breaking if the angle is too obtuse.
The suction cup lifter (2) is used as the deflection point to achieve the corresponding angle.
Depending on the window glass version and the effort applied during cutting, it may be necessary to change the deflection point during cutting.
The suction cups without a spool can even be used as the deflection point.

Fig 3: Mounting Suction Cup Lifters On Windscreen Or Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
