61 13... Relay carrier

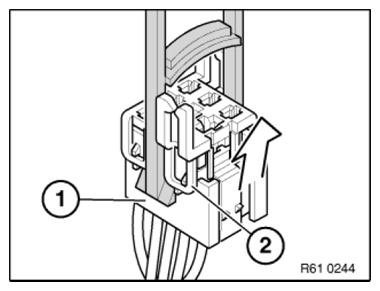

Place special tool 61 1 153 against relay carrier (1) and carefully pull in direction of arrow until the locking tabs (2) of the relay carrier are raised up.

Fig 1: Pulling Special Tool (61 1 153)

Courtesy of BMW OF NORTH AMERICA, INC.

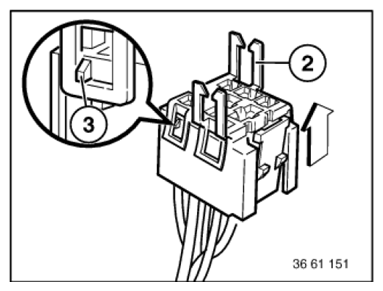

Pull relay carrier (2) in direction of arrow into the first catch (3).

Fig 2: Pulling Relay Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

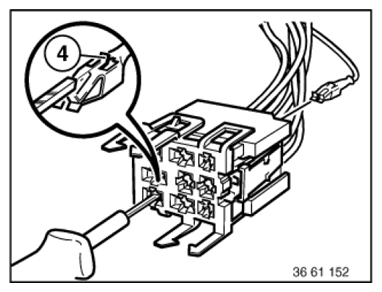

Press down arrester hook (4) of corresponding contact and pull out the cable with contact.

With special tool 61 1 136 or 61 1 137 (press out) press out dual spring contacts.

Fig 3: Removing Dual Spring Contacts Using Special Tool (61 1 136) Or (61 1 137)

Courtesy of BMW OF NORTH AMERICA, INC.
