61 13... Crimping stop parts

Special tools required:

• 12 1 080
• 12 1 081
• 12 1 083

1. Crimping contact sleeves for 4 mm ²  comb connectors and ignition cable contacts

   Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm² contact sleeves for comb connectors.

   • 12 1 081 (hand pliers)
   • 12 1 083 (nest)

   See repair instructions

   SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

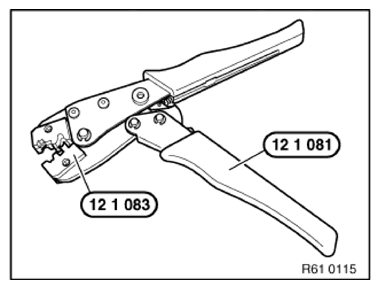

   Fig 1: Identifying Hand Pliers And Nest

   Courtesy of BMW OF NORTH AMERICA, INC.

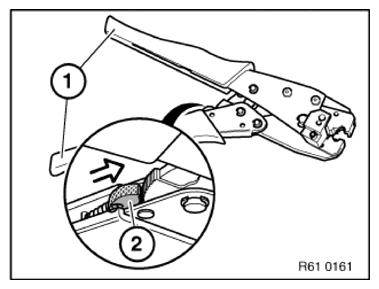

   Release special tool 12 1 081 :

   Squeeze grips (1) lightly and push release lever (2) in direction of arrow.

   Or:

   Compress handles until limit position, hand pliers unlock automatically.

   Fig 2: Releasing Lever And Grips

   Courtesy of BMW OF NORTH AMERICA, INC.

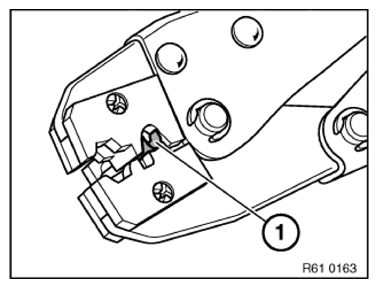

   Place 4 mm² contact sleeve in nest with anti-twist safeguard (1) as far as possible.

   Fig 3: Locating Safeguard

   Courtesy of BMW OF NORTH AMERICA, INC.

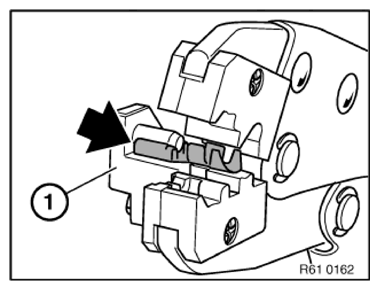

   Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

   Fig 4: Pressing Matrix In Crimping Tool

   Courtesy of BMW OF NORTH AMERICA, INC.
   NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION  from cables.

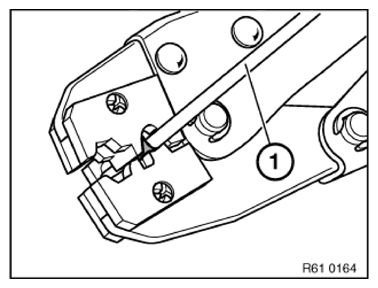

   Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

   Compress crimping tool to limit position.

   Crimping tool unlocks automatically.

   Take contact out of crimping tool.

   Fig 5: Identifying Wire Stripped End

   Courtesy of BMW OF NORTH AMERICA, INC.
2. Checking crimping

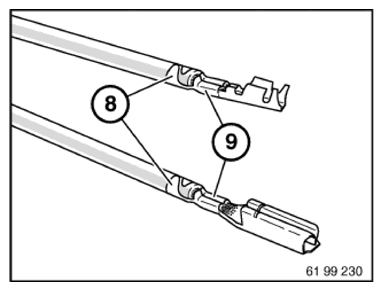

   Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

   NOTE: Illustration shows butt connectors and contact sleeves for comb connectors knocked on one side. The crimping procedure is identical here.
   Fig 6: Identifying Wire Crimp Area

   Courtesy of BMW OF NORTH AMERICA, INC.

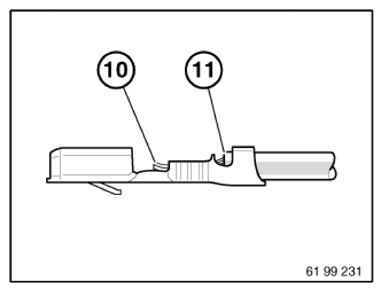

   Correct crimping:

   Visible conductor end (10).

   Visible insulation end (11).

   Fig 7: Identifying Wire Insulation End

   Courtesy of BMW OF NORTH AMERICA, INC.

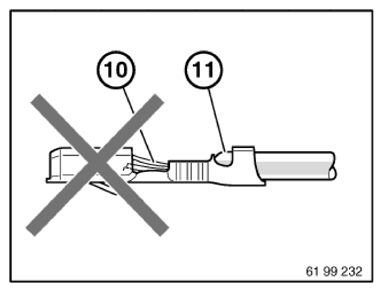

   Incorrect crimping:

   Conductor end (10) inserted too far.

   Insulation end (11) in wire crimp.

   If necessary, repeat crimping with a new contact.

   Fig 8: Identifying Conductor End Of Crimping Incorrect Position

   Courtesy of BMW OF NORTH AMERICA, INC.

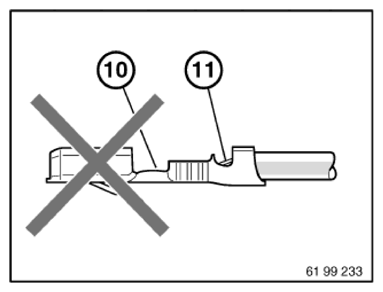

   Incorrect crimping:

   Conductor end (10) not visible.

   Insulation end (11) not visible.

   If necessary, repeat crimping with a new contact.

   Fig 9: Identifying Conductor End Of Crimping Incorrect Position

   Courtesy of BMW OF NORTH AMERICA, INC.
