Tire Pressure Monitor System (TPMS) Functional Changes (36 02 11)

Publication date: 2014-05-01
Reference number: 36 02 11

TIRE PRESSURE MONITOR SYSTEM (TPMS) FUNCTIONAL CHANGES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B36 02 11, Date of Issue: May, 2014

BMW:	E70 (X5), E71 (X6), E82 (1 Series Coupe), E88 (1 Series Convertible), E89 (Z4 Roadster), E90 (3 Series Sedan), E91 (3 Series Sports Wagon), E92 (3 Series Coupe), E93 (3 Series Convertible); Produced from 07/2011 to 06/2012, F01, F02 (7 Series Sedan), F07 (5 Series Gran Turismo), F10 (5 Series Sedan), F12 (6 Series Convertible), F13 (6 Series Coupe), F25 (X3); Produced from 07/2011 to 12/2011
GROUP:	Wheels and Tires

Superceded Bulletin(s): SI 36 02 11, Date of Issue: August, 2011

This Service Information bulletin supersedes SI 36 02 11 dated August 2011.

SUBJECT

Tire Pressure Monitor System (TPMS) Functional Changes

INFORMATION

There has been a disruption in the production and supply chain of certain electronic components. These events have influenced global manufacturing facilities, including the automotive sector. In order to fulfill customer demand and maintain production schedules, BMW has made a change to the Tire Pressure Monitor System of certain vehicles.

Although the basic system operation and function remain the same, changes have been made to the vehicle's display elements when a low tire pressure condition occurs.

The following points apply to vehicles produced during the period listed above:

The Tire Pressure Monitor System continues to meet all federal requirements.

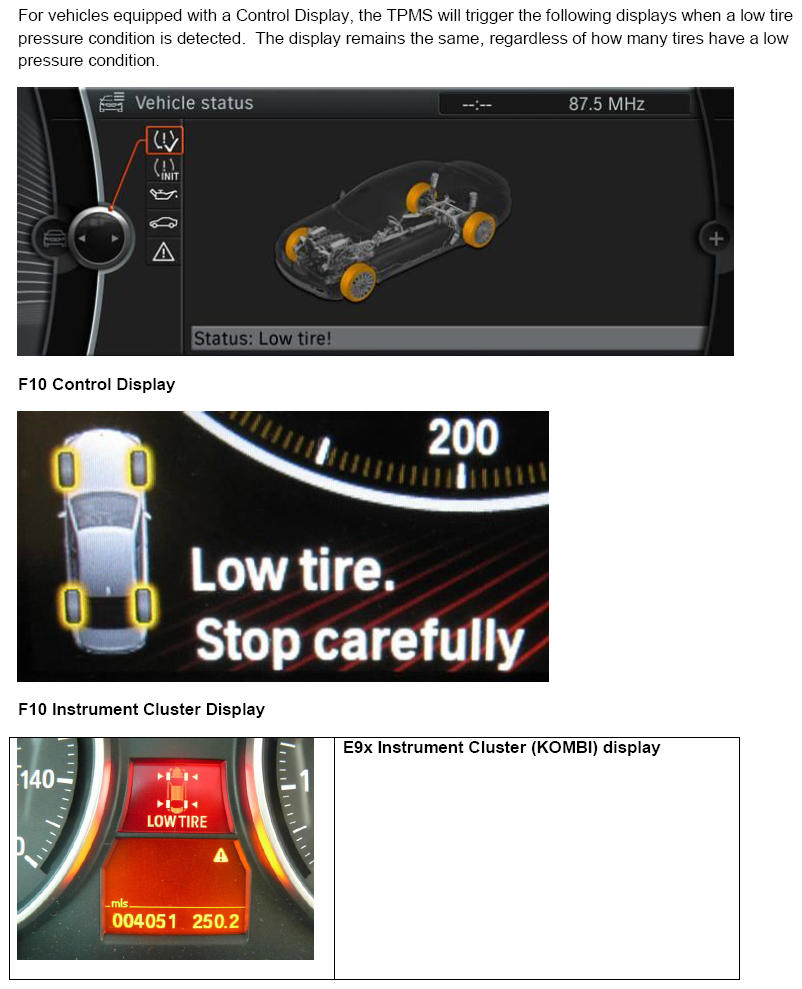

When a low tire pressure condition is detected, a general system warning is issued. The warning will be displayed in the instrument cluster (KOMBI) and/or Control Display, depending on the vehicle's equipment level (refer to the Attachment).
When a driver is alerted to a low pressure condition, all four tires should be inspected for damage and proper inflation.

The system components, wheel electronics and central antennae/module are fully compatible with current replacement parts.

This functional change represents a running production change and is not a defect in materials or workmanship.

Any further changes to the system function or components will be communicated in a future bulletin.

It is imperative that all service personnel be familiar with these changes.

WARRANTY INFORMATION

Not applicable.

ATTACHMENTS

B360211_Attachment
