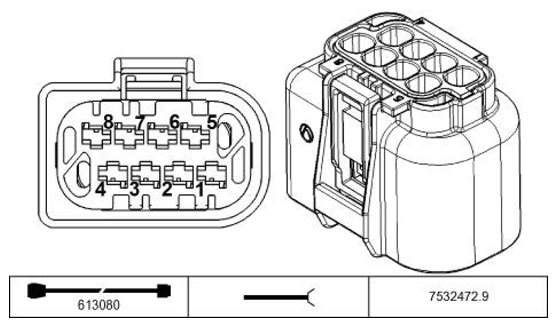

Control Module, Transfer Box X80003 Connector End View
Pin Assignments At Plug Connector X80003
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal Classification resistor | Classification resistor |
| 2 | E | Control signal, VTG actuator motor | VTG actuator |
| 3 | A | Activation VTG actuator | VTG actuator |
| 4 | A | Activation VTG actuator | VTG actuator |
| 5 | M | Ground | VTG actuator Classification resistor |
| 6 | E | Control signal, VTG actuator motor | VTG actuator |
| 7 | E | Control signal, VTG actuator motor | VTG actuator |
| 8 | E | Control signal, VTG actuator motor | VTG actuator |
