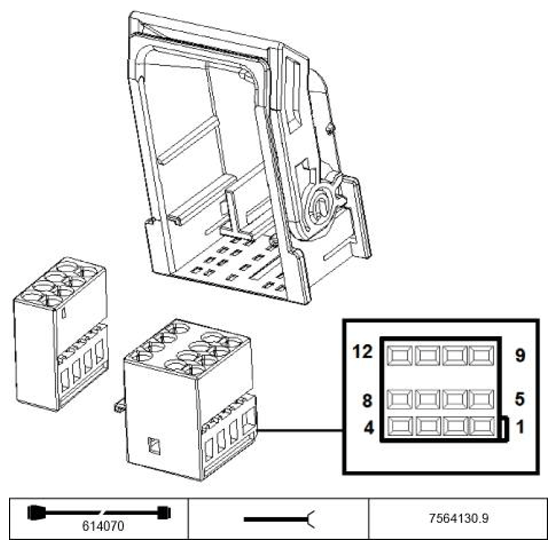

Digital Diesel Electronics Control Module SX200061A Connector End View
Pin Assignments At Plug Connector X200061
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation Injector 5 | Injector 5 |
| 2 | A | Activation Injector 1 | Injector 1 |
| 3 | A | Activation Injector 5 | Injector 5 |
| 4 | A | Activation Injector 6 | Injector 6 |
| 5 | A | Activation Injector 6 | Injector 6 |
| 6 | A | Activation Injector 3 | Injector 3 |
| 7 | A | Activation Injector 2 | Injector 2 |
| 8 | A | Activation Injector 3 | Injector 3 |
| 9 | A | Activation Injector 4 | Injector 4 |
| 10 | A | Activation Injector 2 | Injector 2 |
| 11 | A | Activation Injector 4 | Injector 4 |
| 12 | A | Activation Injector 1 | Injector 1 |
