Installation Position, Seat Occupancy Electronics

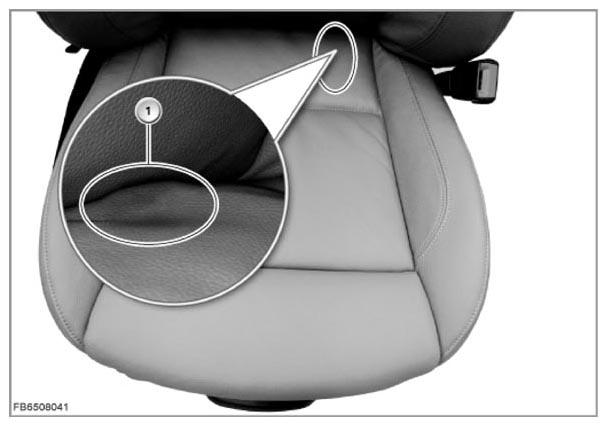

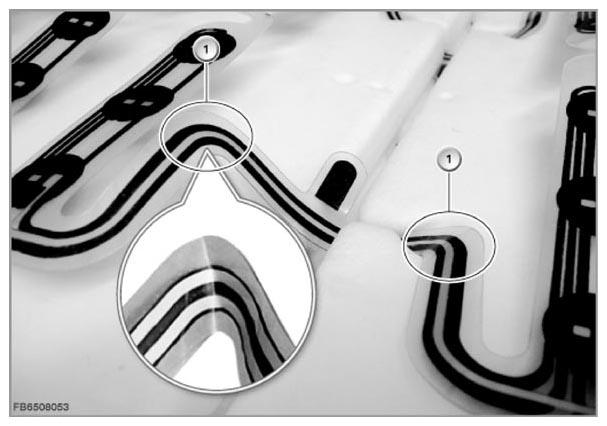

Fig 1: Identifying Seat Occupancy Mat Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Seat occupancy mat folds and creases

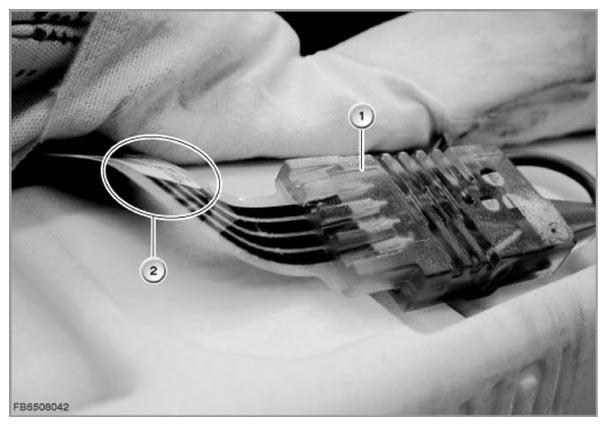

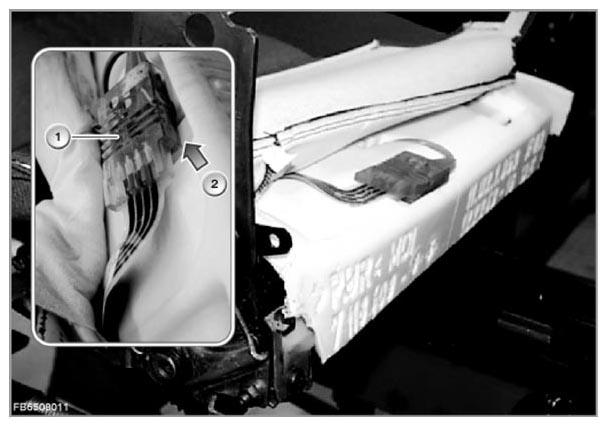

Fig 2: Identifying Front Conductor Path Of Electronics Slipped

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	ELO box
2	Conductor paths

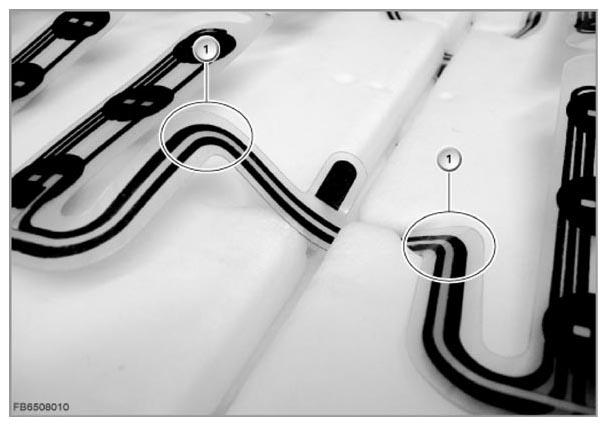

Fig 3: Identifying Conductor Paths On Transverse Seams Slipped

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Conductor path has slipped

Fig 4: Locating Cast Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Electronics box
2	Electronics box has slipped

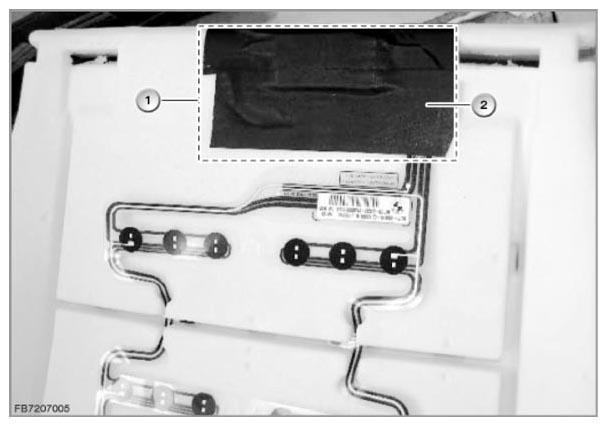

Fig 5: Attaching Electronic Component To Recess In Seat Cushion Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Only fix dashed adhesive area
2	Fabric tape

Fig 6: Identifying Seat Occupancy Mat Kinked

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Conductor path twisted

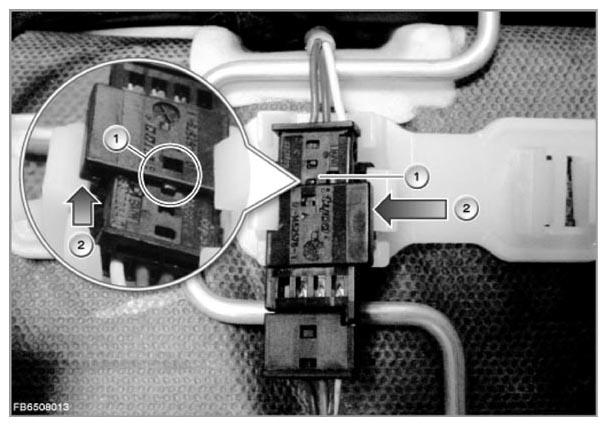

Fig 7: Locating Connector Not Correctly Locked

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Connector not locked in place
2	Connector not correctly locked in the fixture

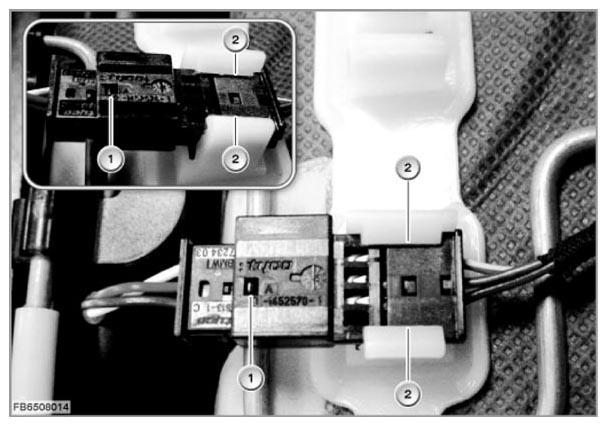

Fig 8: Identifying Connector Correctly Locked

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Connector locked in place correctly
2	Connector is correctly locked in the fixture

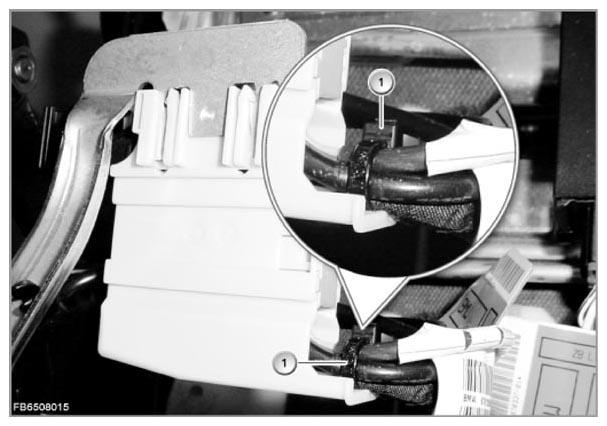

Fig 9: Identifying Central Seat Connector With Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Cable strap

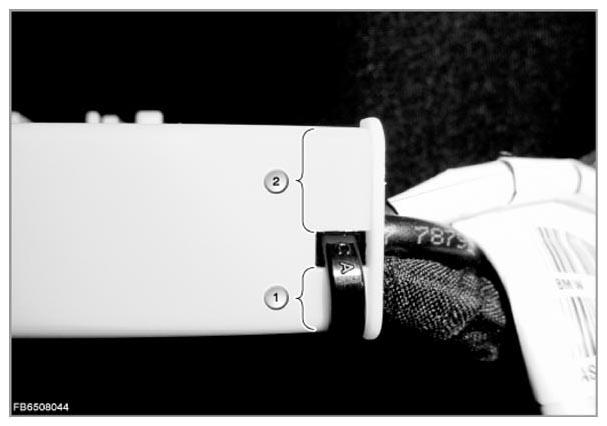

Fig 10: Identifying Cable Strap Position

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Always use the shorter distance 1
2	Do not use the longer distance (no 100% tension relief)

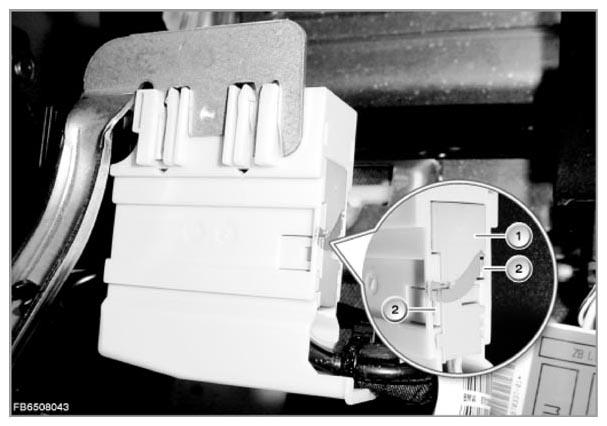

Fig 11: Identifying Central Seat Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Termination module 3 (SAB)
2	Lock the termination module correctly in the detent lugs of the central seat connector housing.

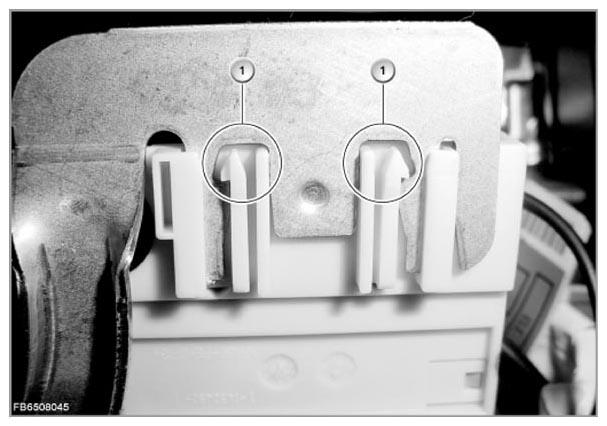

Fig 12: Identifying Central Seat Connector Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Latch mechanism in the bracket of the central seat connector

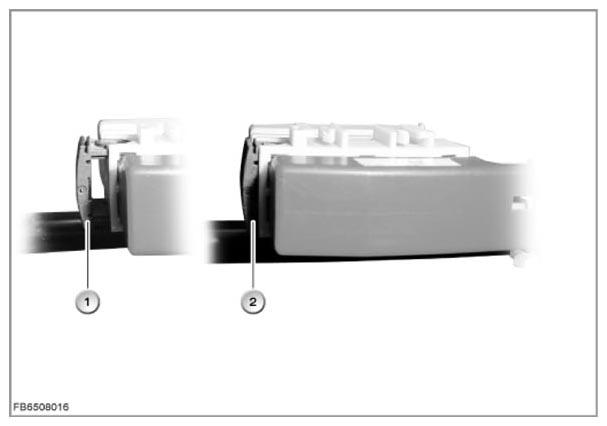

Fig 13: Identifying Latch Mechanism Of Central Seat Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Slide not locked in position
2	Slide locked in position
