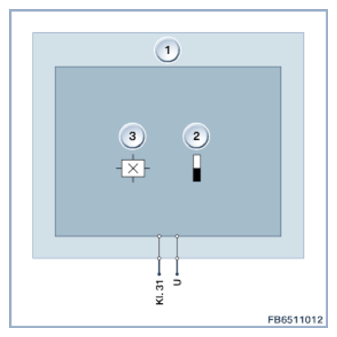

Structure and inner electrical connection
The seat-position sensor has a 2-pin plug connection.
The airbag control unit supplies the seat-position sensor with voltage.
The seat-position sensor has a reverse polarity protection
| Index | Explanation |
|---|---|
| 1 | Seat-position sensor |
| 2 | Magnet |
| 3 | Hall effect sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Kl. 31 | Terminal 31, ground |
| Voltage | Supply voltage |
