86 10... Disassembly of Camlock retaining cam

Unscrew bolts (1).

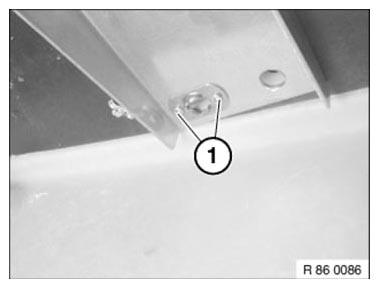

Fig 1: Identifying Camlock Retaining Cam Bolt
G06886748Courtesy of BMW OF NORTH AMERICA, INC.
