86 10... Disconnecting plug connection, wiring harness, front/rear

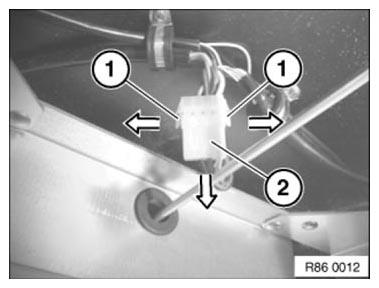

Spread levers (1) on socket housing apart in direction of arrow and disconnect female connector (2) in direction of arrow towards bottom.

Fig 1: Disconnecting Female Connector
G06886769Courtesy of BMW OF NORTH AMERICA, INC.
