System Overview: Notes
The Active Blind Spot Detection system is available as an option on the F01/F02.

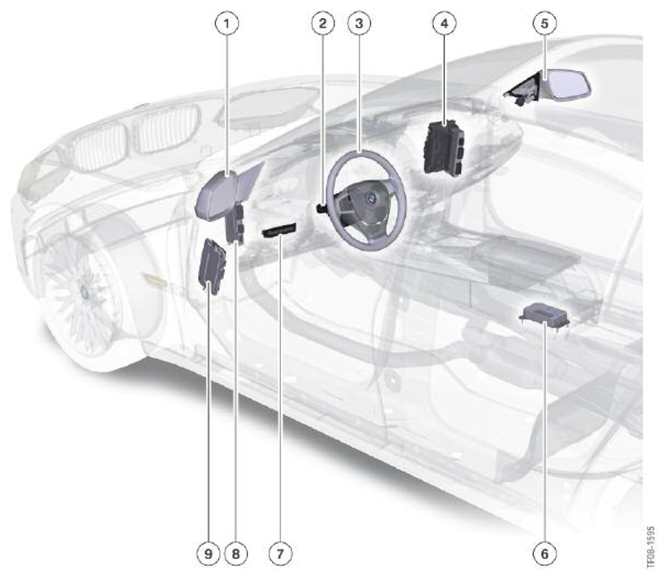

ACTIVE BLIND SPOT DETECTION SYSTEM COMPONENTS CHART
| Index | Explanation |
|---|---|
| 1 | Driver's door mirror |
| 2 | Steering column switch cluster |
| 3 | Steering wheel with steering wheel module and vibration actuator |
| 4 | Junction box electronics and front fuse carrier |
| 5 | Front passenger door mirror |
| 6 | Integrated Chassis Management control unit |
| 7 | Operating unit for driver assistance systems |
| 8 | Central gateway module |
| 9 | Footwell module |

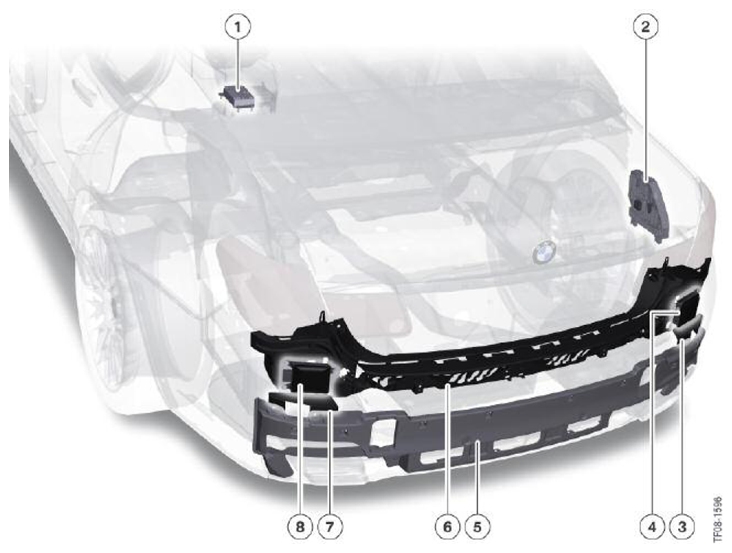

REAR VIEW COMPONENTS REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Integrated Chassis Management control unit |
| 2 | Rear fuse carrier in the luggage compartment |
| 3 | Bracket for shielding the right-hand radar sensor |
| 4 | Right-hand master radar sensor |
| 5 | Rear bumper deformation elements |
| 6 | Center guide |
| 7 | Bracket for shielding the left-hand radar sensor |
| 8 | Left-hand SWW2 radar sensor |
