RSE Control Unit: Notes

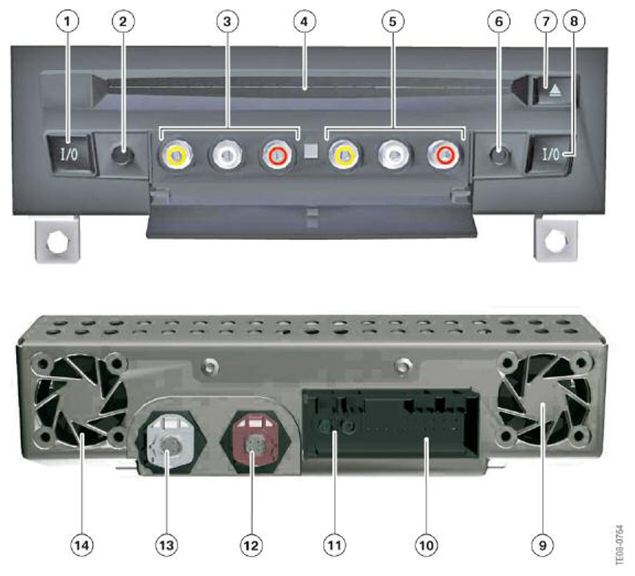

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | ON/OFF switch, left |
| 2 | Jack plug for hard-wired headphone, left |
| 3 | AV input, left (yellow: video, white:audio signal, left, red: audio signal, right) |
| 4 | Slot in DVD player |
| 5 | AV input, right |
| 6 | Jack plug for hard-wired headphone, right |
| 7 | DVD drive Eject button |
| 8 | ON/OFF switch, right |
| 9 | Fan, left |
| 10 | Power supply, connection for infrared transmitters, one CVBS video input |
| 11 | MOST connection |
| 12 | FD connection |
| 13 | FD2 connection |
| 14 | Fan, right |
