Telephone Antenna System: Notes
In order to meet the high quality requirements that apply to the telephone system of the F01/F02, several antennas are installed in the vehicle, with the configuration depending on equipment trim level.
The following antennas are used for this purpose:
- Roof antenna
- Bluetooth antenna
- Emergency-call GSM antenna

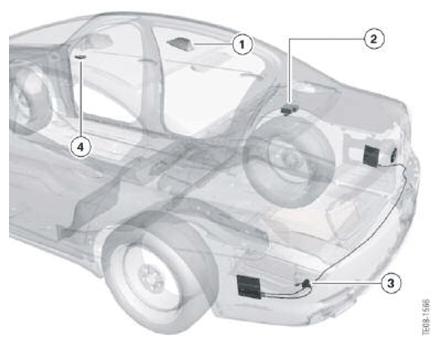

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Roof Antenna |
| 2 | Emergency-call GSM (back-up) antenna |
| 3 | Not for US |
| 4 | Bluetooth antenna |
