System Components: TCU: Notes
The TCU used on the F01/F02 is an evolved unit based on the TCU from the E70.

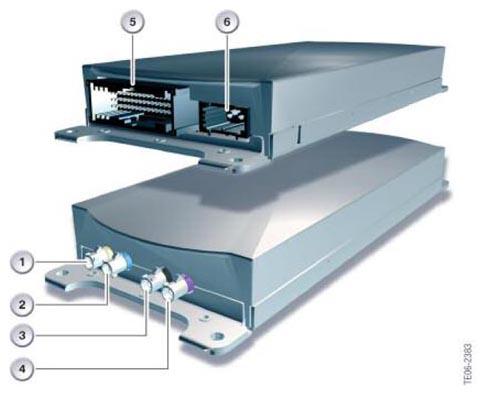

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Bluetooth antenna connection, transparent connector |
| 2 | GPS antenna connection blue connector |
| 3 | Roof antenna connection black connector |
| 4 | Emergency antenna connection purple connector |
| 5 | 54-pin connector |
| 6 | MOST connection |
