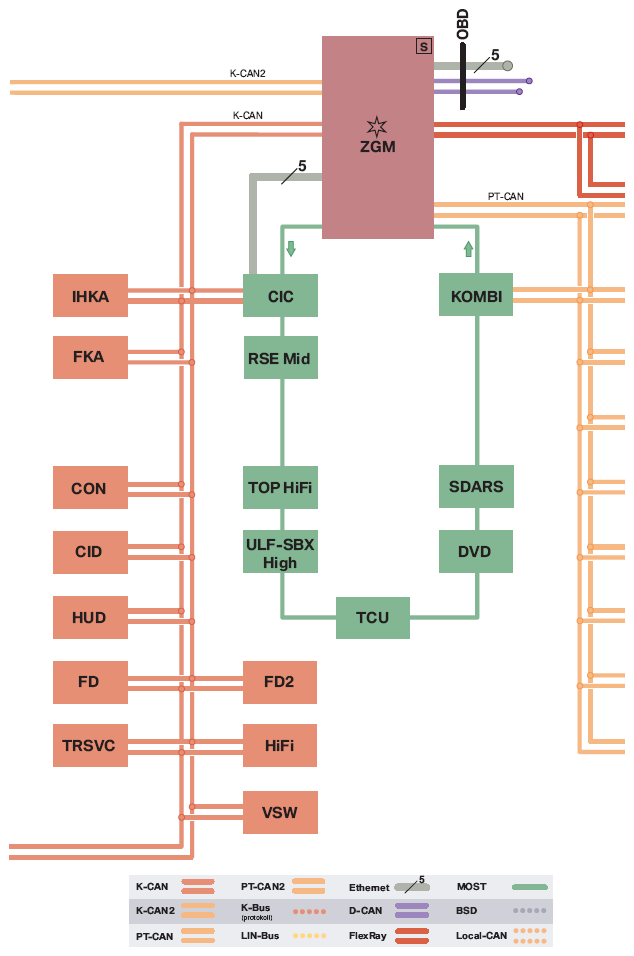

F01/F02 Audio/Bus System Overview
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| CAS | Car Access System |
| CIC | Car Information Computer |
| CID | Central information display |
| CON | Controller |
| DVD | DVD changer |
| FD | Rear-seat display |
| FD2 | Rear seat area display 2 |
| HiFi | HiFi amplifier |
| HKA | Automatic A/C, rear seat compartment |
| HUD | Head-Up Display |
| IHKA | Automatic climate control |
| KOMBI | Instrument cluster |
| OBD | Diagnosis socket |
| RSE | Rear Seat Entertainment |
| SDARS | Satellite tuner |
| TCU | Telematics control unit |
| TOP HIFI | Top-HiFi system |
| SBX High | ULF Interface box "High" (Bluetooth telephone, voice input and USB audio interface) |
| VSW | Video switch |
| ZGM | Central gateway module |
Key to abbreviations - bus overview
ABBREVIATIONS REFERENCE CHART
| Index | Explanation |
|---|---|
| D-CAN | Diagnosis CAN |
| K-CAN | Body CAN |
| K-CAN 2 | Fast body CAN |
| MOST | Media Orientated System Transport |
| PT-CAN | Powertrain CAN |
| PT-CAN 2 | Powertrain CAN 2 |
