Rip Function

This function rips commercially available audio CDs (marked with the Compact Disk Digital Audio logo) and converts them to compressed music files.

Fig 1: Identifying Compact Disc Digital Audio Logo

Courtesy of BMW OF NORTH AMERICA, INC.

This function can be performed when the vehicle is stationary or while driving.

The music on the CD can also be played back during the conversion and storage process of the rip function.

The music data is converted at a speed between 3 and 12 times the playback speed. Following the conversion the music data is stored on the hard disk in WMA file format.

The data is then displayed in the form of file folders in the music collection menu. These folders are identified with the corresponding title and with a round CD icon.

After the conversion process the files will be displayed and can now be selected individually by using the music search function.

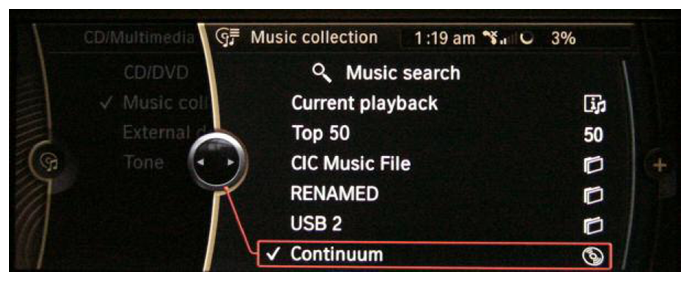

Fig 2: Display - Music Store Menu

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Selecting Continue

Courtesy of BMW OF NORTH AMERICA, INC.
