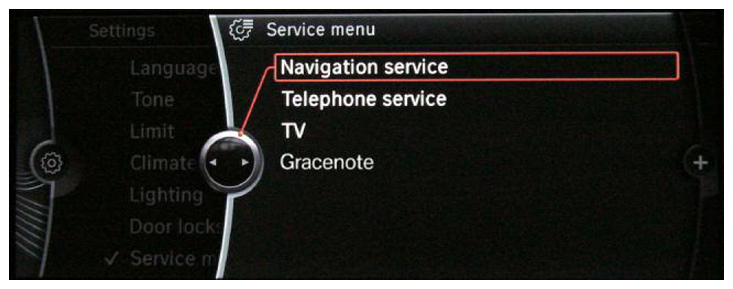

Unlocking the Service Menu Option: Navigation
NAVIGATION MENU DESCRIPTION CHART
| Navigation | Screen content (example) | Explanation |
|---|---|---|
| GPS | ||
| GPS | Status Latitude: 12°34'56" N | GPS position data |
| GPS | Tracking 01: 03 14, 3, 02 xx, yy, z | GPS satellites |
| GPS | Version Receiver SW Version/Date | Software version and date of manufacture of GPS receiver |
| Sensor test | Wheel sensors, GPS satellites, Gyro | Check of input signals |
| Map version | Map Database: 1.067 | Map version number Database: 1.067 |
| Location entry | Location Entry: Entry | Loop same as destination entry |
| Voice output test |
NOTE:
Although it appears in the Service menu, TV is not available on US vehicles.
