CIC Application Board with Processors

The application board accommodates the main processor (Central Processing Unit) and the main memory modules (Random Access Memory) for the CIC. These components are soldered into the board and cannot be replaced.

INDEX REFERENCE CHART

Index	Explanation
1	CPU - Central processing unit
2	Main memory (RAM) of the CIC

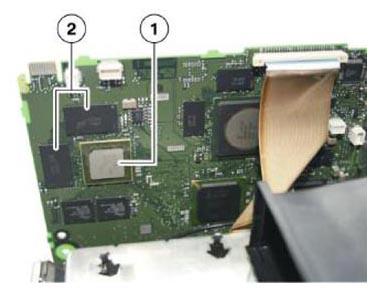

Fig 1: Identifying CPU And Main Memory (RAM)

Courtesy of BMW OF NORTH AMERICA, INC.
