Main AC Components

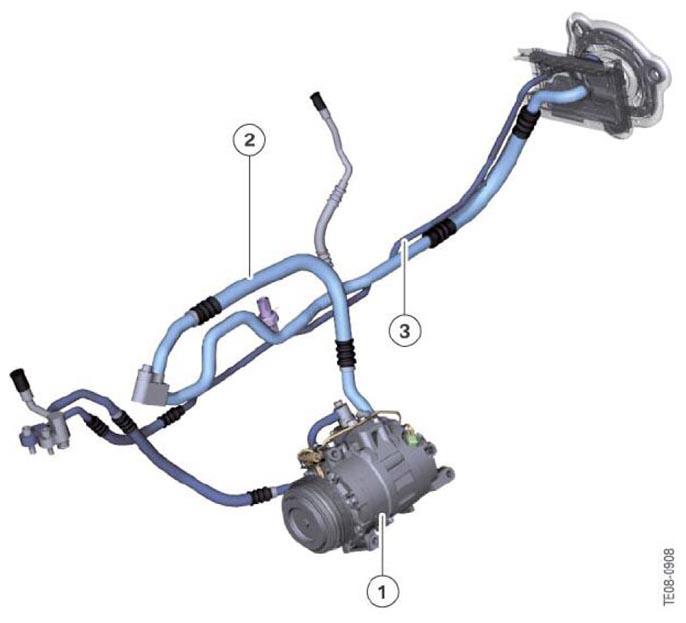

The A/C compressor location and refrigerant lines routing in engine compartment.
Courtesy of BMW OF NORTH AMERICA, INC. INDEX EXPLANATION CHART
| Index |
Explanation |
| 1 |
A/C compressor |
| 2 |
Refrigerant circuit intake line |
| 3 |
Refrigerant circuit pressure line with pressure sensor |
