System Circuit Diagram for Automatic Soft Close Function

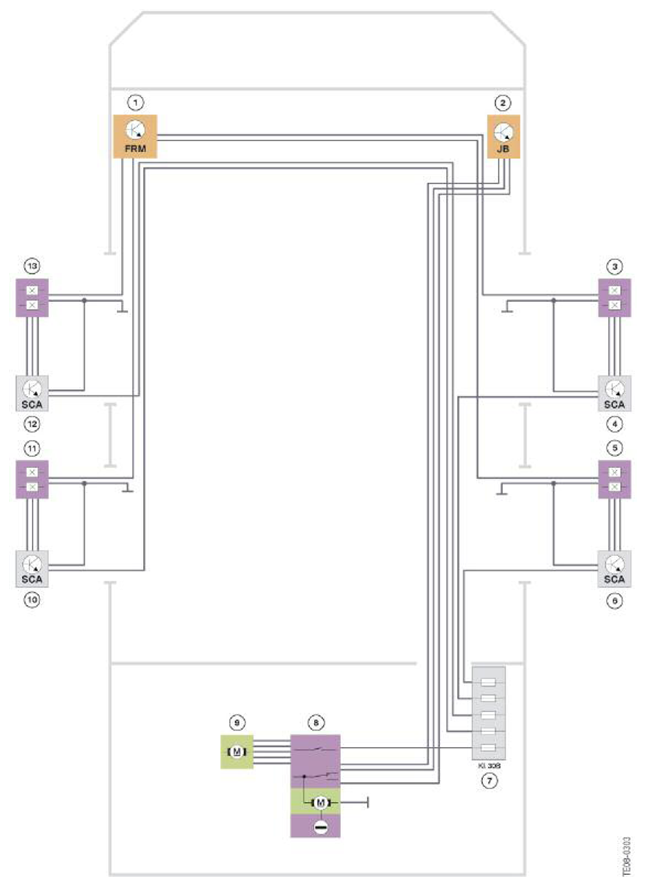

Fig 1: Automatic Soft Close Function System Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

COMPONENTS DESCRIPTION CHART

Index	Explanation
1	Footwell module (FRM)
2	Junction box module (JB)
3	Door switch, central locking, Hall-effect sensor for front passenger door Automatic Soft Close function
4	Front passenger door Automatic Soft Close unit (SCA)
5	Door switch, central locking, Hall-effect sensor for near-side rear door
6	Near-side rear door Automatic Soft Close unit (SCA)
7	Luggage compartment power distribution box
8	Trunk central locking unit
9	Trunk Automatic Soft Close unit
10	Off-side rear Automatic Soft Close unit
11	Door switch, central locking, Hall-effect sensor for off-side rear door Automatic Soft Close function
12	Driver's door Automatic Soft Close unit (SCA) Automatic Soft Close function
13	Door switch, central locking, Hall-effect sensor for driver's door Automatic Soft Close function
KI. 30B	Terminal 30 basic mode
