Center-lock button

The center-lock button is installed between the center of the outlets in the dashboard. The center-lock button forms one unit together with the hazard warning lights button.

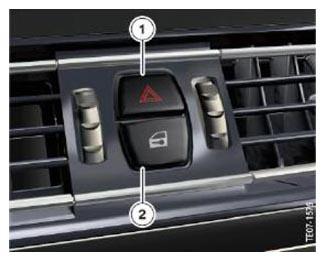

Fig 1: Identifying F01/F02 Button Unit

Courtesy of BMW OF NORTH AMERICA, INC.

CENTRAL LOCKING BUTTON REFERENCE CHART

Index	Explanation
1	Hazard warning flasher button
2	Central locking button

NOTE: The center lock button can also be operated when the vehicle is locked. However, opening the vehicle door will trigger an alarm from the anti-theft alarm system.
