ID transmitter

Each vehicle is supplied with a purse key/spare key and two ID transmitters. The adapter for the spare key is located in the glove compartment.

NOTE: Up to eight ID transmitters can be used in conjunction with the Comfort Access function. Four ID transmitters can be used for personal profiles.

The ID transmitter has one button for locking and one for unlocking the vehicle. There is a separate button for unlocking the trunk. Pressing the trunk symbol button triggers automatic closing/opening of the trunk. Automatic closing requires the automatic trunk actuation option.

The ID transmitter contains a battery which lasts up to four years.

The mechanical key is located in the ID transmitter.

NOTE: The passenger airbag can also be deactivated/activated with the mechanical key.

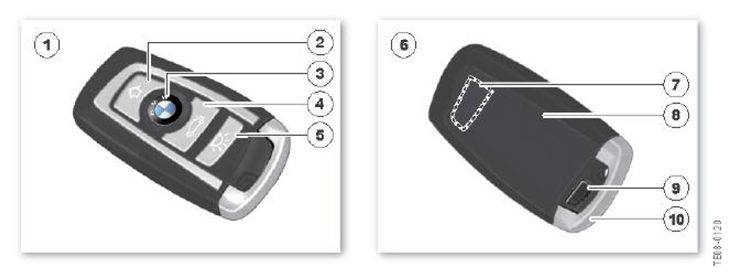

Fig 1: Identifying F01/F02 ID Transmitter

Courtesy of BMW OF NORTH AMERICA, INC.

COMPONENTS DESCRIPTION CHART

Index	Explanation
1	ID transmitter top view
2	Unlock/comfort open
3	Lock/comfort close
4	Button for OPEN trunk
5	Button for vehicle search function
6	ID transmitter rear view
7	Transponder coil area
8	Battery compartment
9	Button for mechanical key
10	Mechanical key

The ID transmitter has a 512 MB data memory. The following data can be stored in the ID transmitter:

ID TRANSMITTER DATA

Data	Explanation
km reading (mileage)	Current km reading of vehicle
VIN
Key number	Number of the ID transmitter
Fault code memory entries	Which displays fault code memory entries and associates them with possible PuMAs
NAVI-DVD version	Data status of navigation DVD
Engine oil	Information on topping up or draining the engine oil, e.g. in the case of overfilling
Battery condition	Battery charge status
Integration stages	Integration stage that left the factory, integration stage last programmed or currently available integration stage.

NOTE: The remote control receiver is integrated in the antenna diversity facility and passes the remote control signal to the Car Access System 4 via the LIN bus.
