Input/output Central Locking

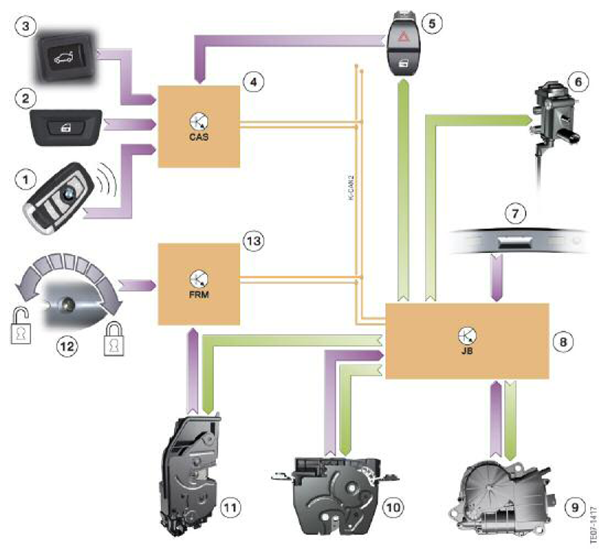

COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | ID transmitter |
| 2 | Central locking button |
| 3 | Interior trunk button in the A-pillar |
| 4 | Car Access System 4 (CAS 4) |
| 5 | Center-lock button |
| 6 | Central locking, fuel filler flap |
| 7 | Exterior trunk button |
| 8 | Junction box electronics module (JB) |
| 9 | Automatic soft-close drive in the trunk lock |
| 10 | Trunk central locking system |
| 11 | Lock (4x) in vehicle doors |
| 12 | Driver's-door lock barrel |
| 13 | Footwell module (FRM) |
| K-CAN2 | Bodyshell CAN |
