Control Unit
The Car Access System is located above the steering column on the right-hand side.
For the Comfort Access function, the Car Access System controls the transmitting antennas for the vehicle exterior and interior.
The outside door handle electronics are read by the Car Access System.

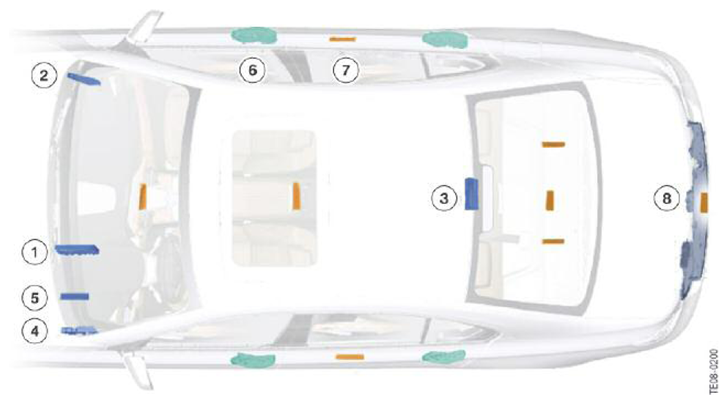

COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Car Access System 4 with Comfort Access |
| 2 | Junction box electronics |
| 3 | Remote control receiver in the diversity module |
| 4 | Footwell module |
| 5 | Central gateway module |
| 6 | Outside door handle electronics |
| 7 | Antennas for Comfort Access |
| 8 | Central locking components in the trunk |
