Bi-xenon Headlights: Notes

Bi-xenon headlights are installed as standard equipment and are located in the outer chamber of the headlights.

In connection with the bi-xenon headlights, the shutter for the low beam light is activated by the "high beam ON" signal thus enabling the high beam light. High beam is also used for the headlight flasher function

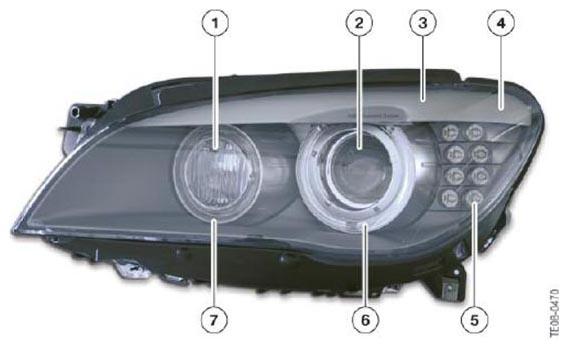

Fig 1: Identifying Bi-Xenon Headlights Components

Courtesy of BMW OF NORTH AMERICA, INC.

COMPONENTS DESCRIPTION CHART

Index	Explanation
1	Turning lights
2	Bi-xenon low beam/high beam
3	Position light/daytime driving lights/design light
4	Side marker light (US only)
5	Direction indicator lights
6	Side lights/daytime driving lights corona ring
7	Side lights/daytime driving lights corona ring

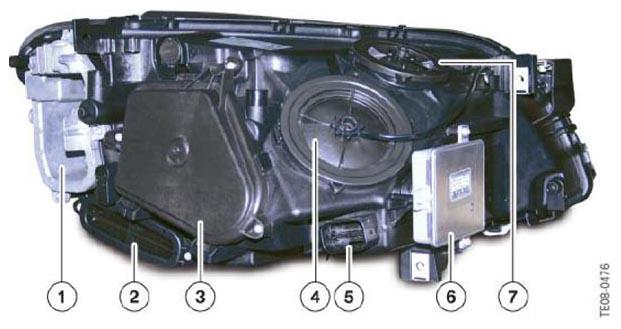

Fig 2: Identifying Bi-Xenon Headlights F01/F02 (Rear View)

Courtesy of BMW OF NORTH AMERICA, INC.

COMPONENTS DESCRIPTION CHART

Index	Explanation
1	Direction indicator lights heat sink
2	Headlight driver module
3	Cover for bi-xenon lamp
4	Cover for lamp, side lights/daytime driving lights corona ring
5	Headlight connection
6	Voltage supply for bi-xenon lamp
7	Cover for lamp, turning lights
