Turning Lights: Notes

The turning light function is available only in connection with the option Adaptive Headlight. In addition to the adaptive headlights, the turning light additionally illuminates the area in front of and beside the vehicle.

The turning light makes it possible to recognize persons or traffic situations earlier in the turn-off area.

Parameters such as the steering angle and vehicle speed are taken into account for the turning light function.

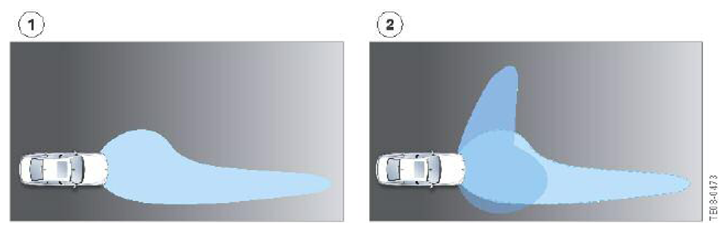

Fig 1: Fundamental Illumination With Turning Light F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.
