All Interior Lighting Systems

The interior lighting is based on the interior lighting on the F01/02 is based on E90. The interior lighting comprises the lights in the passenger compartment roof, luggage compartment, footwell and the interior door lights.

Exterior door lighting is provided by the courtesy lights (exterior door handles) and the doorway lights.

The front and rear passenger compartment roof lights are in the form single light units.

A new feature is the light for the map pocket on the backrest of the front seat.

The graphic below shows the control units that have an influence on the interior lighting:

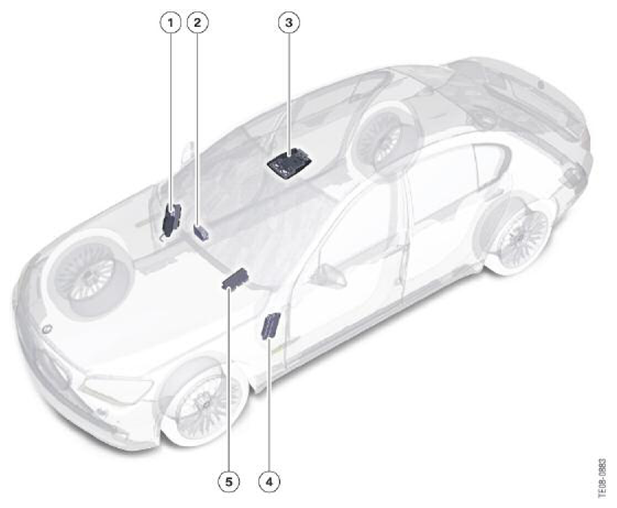

Fig 1: Identifying Control Units For Interior Lighting On F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.
