Roof Function Center
The roof function center provides the power supply for the rear interior light unit. The front vanity mirrors also receive their power supply from the roof function center.

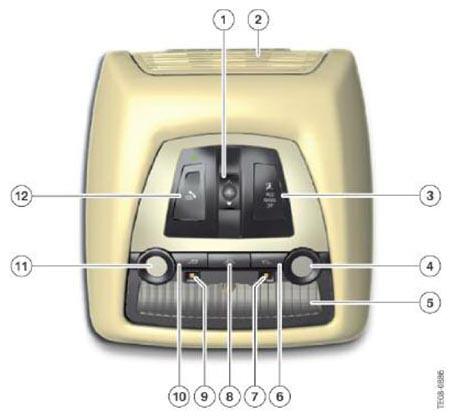

COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Button for panoramic glass roof |
| 2 | Openings for ultrasonic interior movement detector |
| 3 | Passenger airbag OFF light |
| 4 | Passenger's reading lamp |
| 5 | Interior light |
| 6 | Passenger's reading light button |
| 7 | Ambient lighting |
| 8 | Interior lighting button |
| 9 | Ambient lighting |
| 10 | Driver's reading light button |
| 11 | Driver's reading light |
| 12 | Emergency call button |
