Map Pocket Lights

The map pocket lights are in the backrests of the front seats. An LED supplies light to a fiber-optic lead. The fiber-optic lead is integrated in the seat backrest. The light from the LED is directed downwards by the fiber-optic lead, thereby illuminating the map pocket.

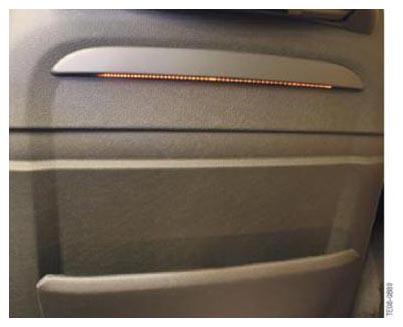

Fig 1: Identifying Map Pocket Light In Driver's Seat Backrest On F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.
