Vanity Mirror

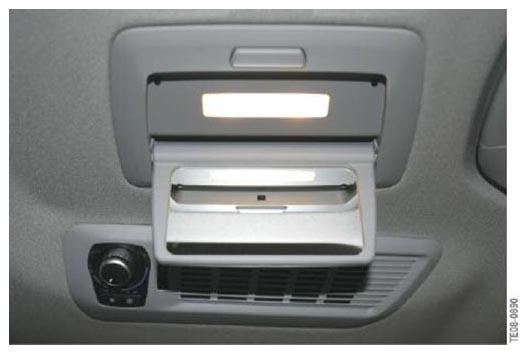

Vanity mirrors are fitted as standard on the driver's and passenger side at the front. The vanity mirror lights are fused in the front power distribution box and connected to Terminal 30B.
NOTE:
Terminal 30B is looped through by the roof function center. 1 On the F02, rear vanity mirrors are also available. The vanity mirror lights are supplied with power directly by the footwell module.
On the F02, rear vanity mirrors are also available. The vanity mirror lights are supplied with power directly by the footwell module.
A vanity mirror light has a power consumption of approximately 5 W.
