System Overview: Notes

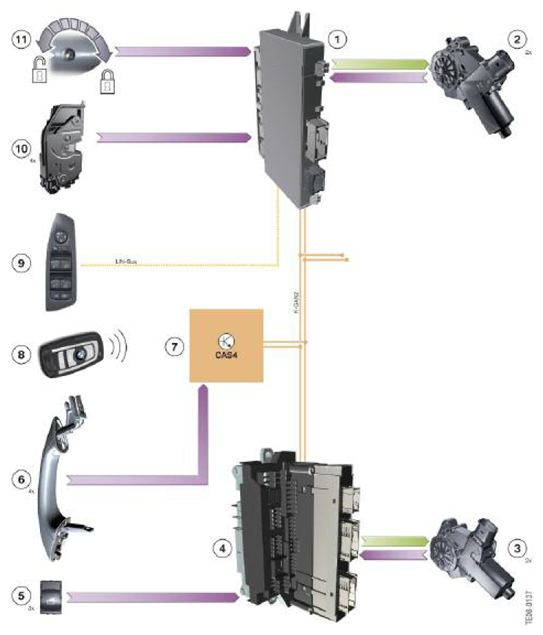

COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Footwell module |
| 2 | Power window motor, front |
| 3 | Power window motor, rear |
| 4 | Junction box electronics |
| 5 | Power window switch, driver's side rear passenger side front and rear |
| 6 | Outside door handle for Comfort Access |
| 7 | Car Access System 4 |
| 8 | Identification transmitter |
| 9 | Driver's door switch cluster |
| 10 | Lock with door contact |
| 11 | Lock cylinder, driver's door |
| K-CAN | Body CAN |
| LIN | Local Interconnect Network bus |
