41 00... Body Gap Dimensions
NOTE:
Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
Dimensions in mm

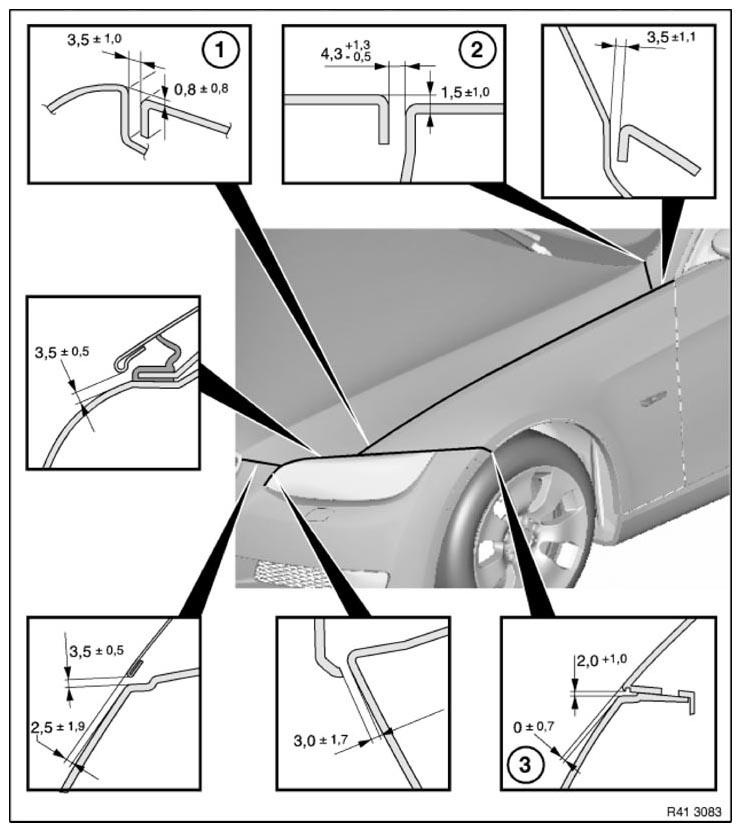

Fig 1: Front Bumper, Hood, Headlamps, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points
Dimension (1) 0.8 ± 0.8 is reduced in the rearward direction of travel to 0 ± 0.8
Dimension (2) 1.5 ± 1.0 is reduced in the downward direction to 0 ± 1.5
Dimension (3) 0 ± 0.7 is reduced in the forward direction of travel to 2.5 ± 0.7

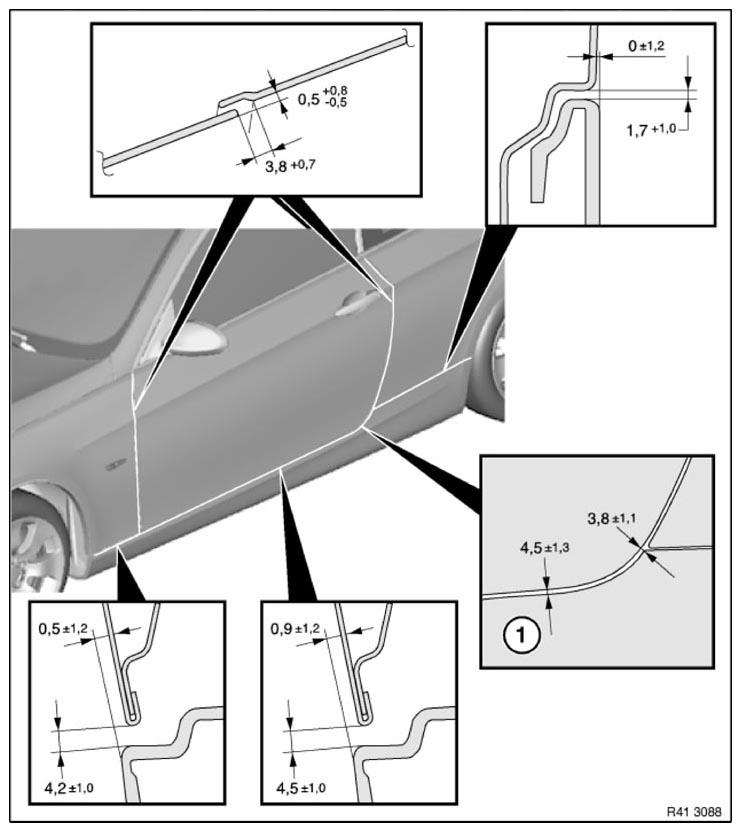

Fig 2: Front Fender, Front Door, Quarter Panel And Door Sill Trim Panel Body Gap Dimensions And Measurement Points
Dimension (1) 4.5 ± 1.3 is reduced in the rearward direction of travel to 3.8 ± 1.1
Dimensions in mm

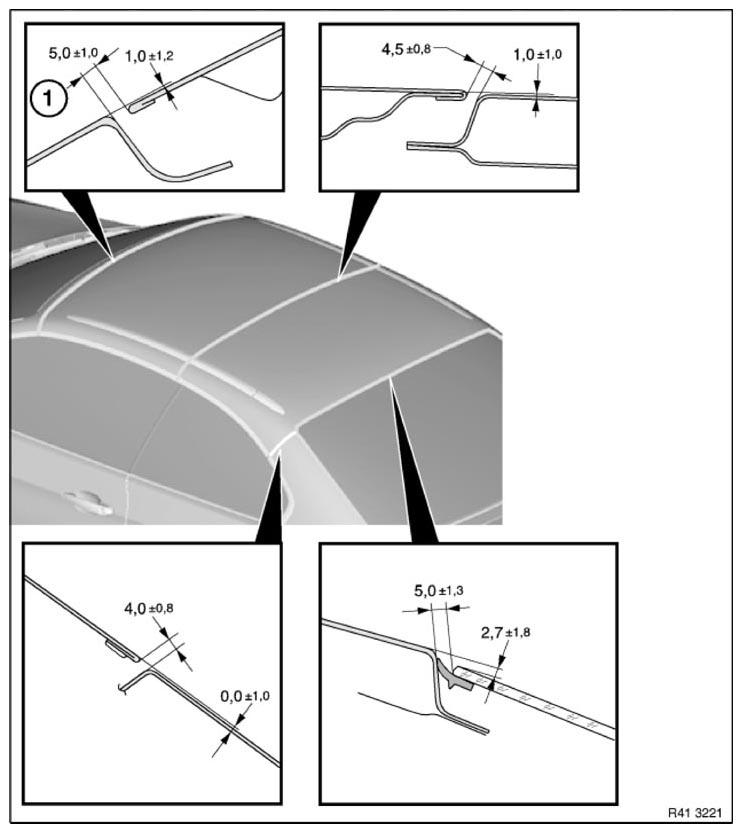

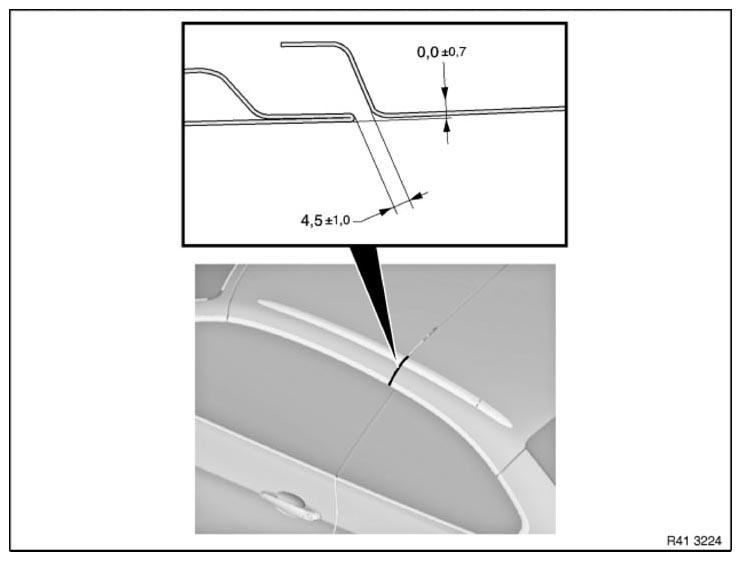

Fig 3: Windshield Header, Front Roof Shell, Rear Roof Shell And Back Window Body Gap Dimensions And Measurement Points
Dimension (1) may have a differential from left to right of max. 1.1 mm.

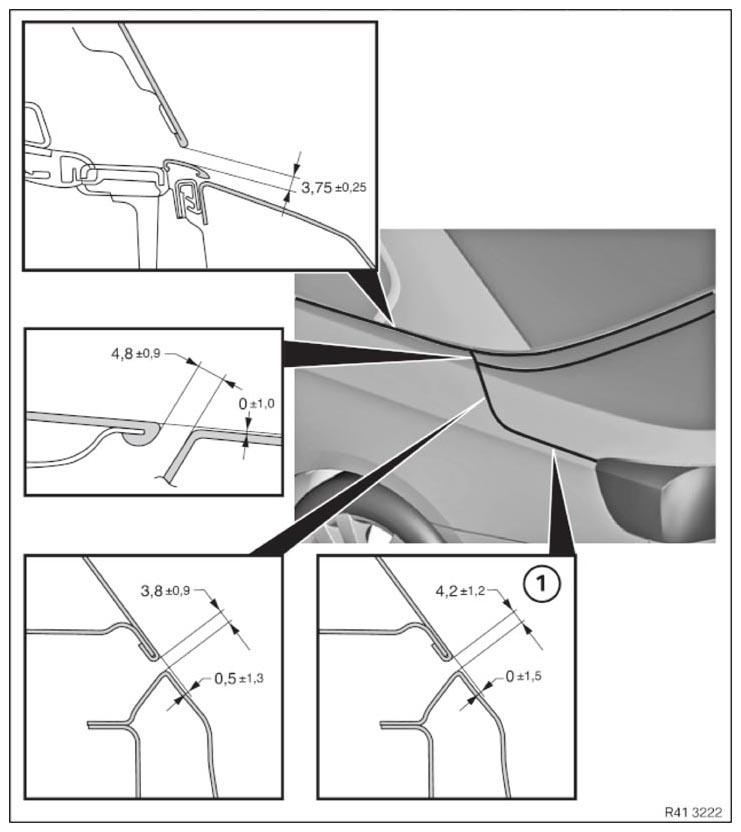

Fig 4: Rear Roof Shell, Convertible Top Compartment, Trunk Lid And Quarter Panel Body Gap Dimensions And Measurement Points
Dimension (1) may have a differential from front to rear of max. 1.1 mm.

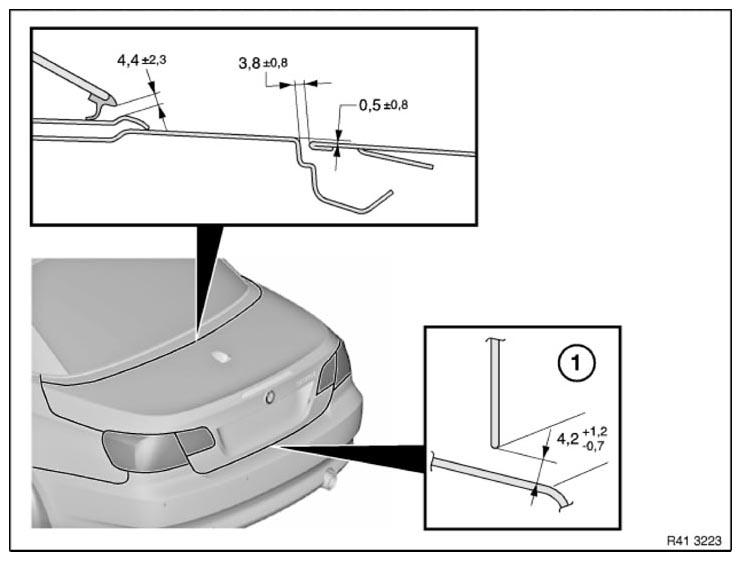

Fig 5: Convertible Top Compartment, Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points
Dimension (1) may have a differential from left to right of max. 1.1 mm.
