13 62 531 Replacing coolant temperature sensor

Necessary preliminary tasks:

• Read out fault memory of DME control unit; if necessary, work through test schedules.
• Switch off ignition.
• REMOVE INTAKE AIR MANIFOLD .

Unlock plug and remove.

Remove temperature sensor.

Installation:

Tightening torque, 13 62 1AZ .

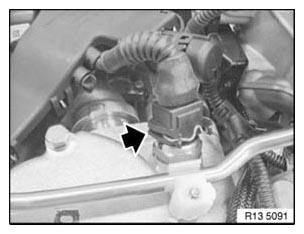

Fig 1: Locating Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
