131090 Tool AM

NOTE: (tool set) For fitting tamper protection, Miscellaneous: Japan and USA only

Consisting of:

1 = 0491245 Drill bit

NOTE: (drill) drill, small (K-Jetronic)

2 = 0491246 Drill bit

NOTE: (drill) drill, large (L-Jetronic)

3 = 0491247 Puller

NOTE: (puller, small (K-Jetronic))

4 = 0491248 Puller

NOTE: (puller, large (L-Jetronic))

5 = 0491249 Device

NOTE: (mounting device (K-Jetronic))

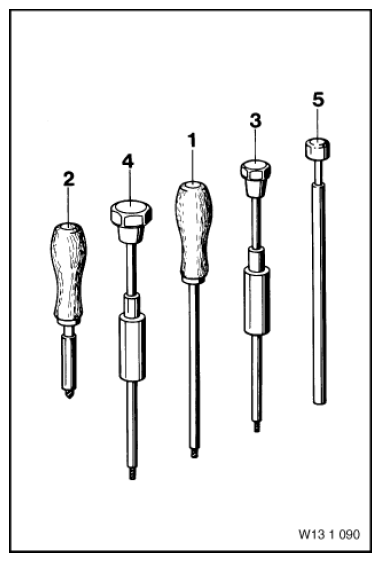

Fig 1: Identifying Tool (131090)

Courtesy of BMW OF NORTH AMERICA, INC.
