Functional description
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The ethanol sensor measures the ethanol content and temperature of the fuel. The dielectric conductivity (= conductivity of a material regarding electrical fields) as well as the electrical conductivity and temperature are determined to achieve a result. After the ethanol content has been calculated, it and the temperature are communicated to the engine management ECU by means of a PWM signal.
2 electrodes form a sensor cell that detects the dielectric conductivity when a current is applied.

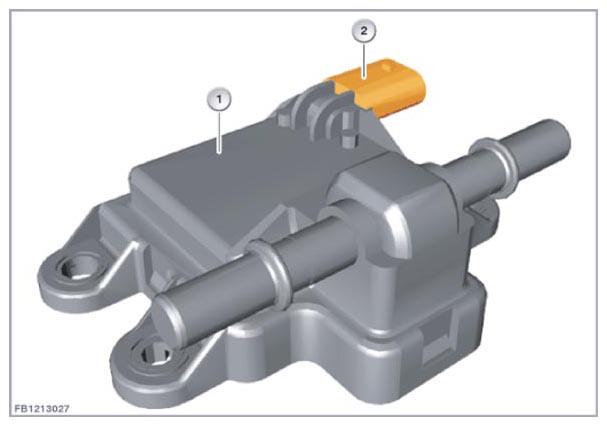

| Item | Explanation |
|---|---|
| 1 | Ethanol sensor |
| 2 | three-pin plug connection |
