Functional description
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Strain gauge are used for detecting the pressure. A steel membrane equipped with strain gauge in the sensor is deformed by the adjacent pressure. The changes in resistance in the strain gauge are electronically detected by a Wheatstone bridge and evaluated. The measured voltage is then included as an actual value in the electric fuel pump actuation.

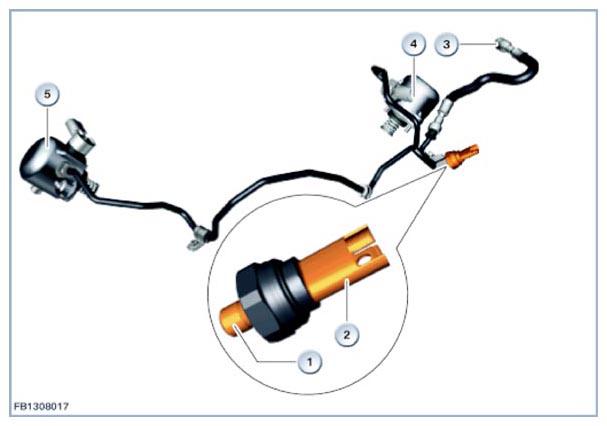

| Index | Explanation |
|---|---|
| 1 | Fuel low-pressure sensor |
| 2 | three-pin plug connection |
| 3 | Fuel delivery line |
| 4 | High pressure pump, cylinders 5 to 8 |
| 5 | High pressure pump, cylinders 1 to 4 |
