32 00... General Chassis And Suspension Definitions

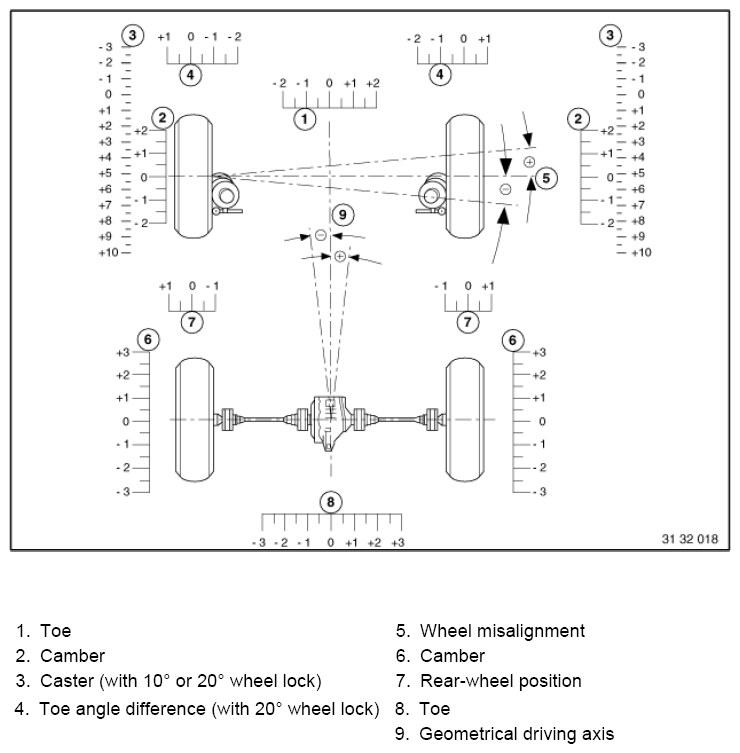

Fig 1: Chassis And Suspension Dimension
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
