61 00... Diagnosis for Condition Based Service: Notes

NOTE: Red symbol for pre-delivery check

The vehicle is coded at the end of the assembly line so that the red symbol for the pre-delivery check is shown in the Next Service display (same symbol as vehicle check).

The symbol is a reminder to the Service staff that the predelivery check has not yet been carried out on this car.

NOTE: Do not carry out a reset.

Do not confuse this function with the "Vehicle check" maintenance scope.

Do not carry out a reset via the instrument cluster.

When carrying out the pre-delivery check with the "Transport Mode/Pre-delivery check" service function:

The symbol is automatically removed from the display after the service function has been executed.

Fig 1: Service Display - Under Body Nut/Bolt Check

Courtesy of BMW OF NORTH AMERICA, INC.

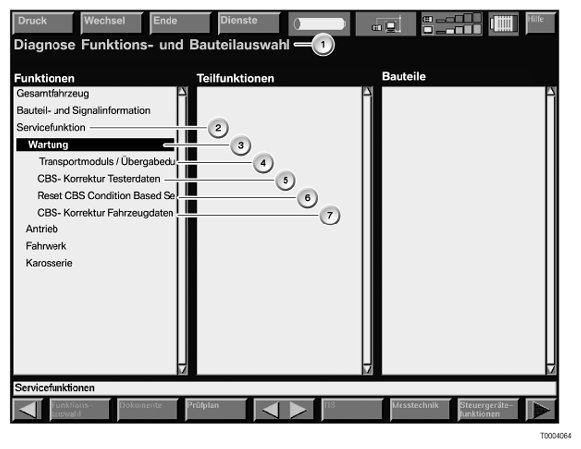

Fig 2: Screen Display - Pre-Delivery Check Service Function

Courtesy of BMW OF NORTH AMERICA, INC.

KEY EXPLANATION CHART

Key	Explanation	Key	Explanation
1	Function and component selection	2	Service functions
3	Maintenance	4	Transport Mode/Pre-delivery check
5	CBS Correction Tester Data	6	Reset CBS Condition Based Service
7	CBS	Correction Vehicle Data

4 service functions are available in the BMW diagnosis system for maintenance:

Transport Mode/Pre-delivery check
CBS Correction Tester Data
Reset CBS
CBS Correction Vehicle Data
